Code: 71629

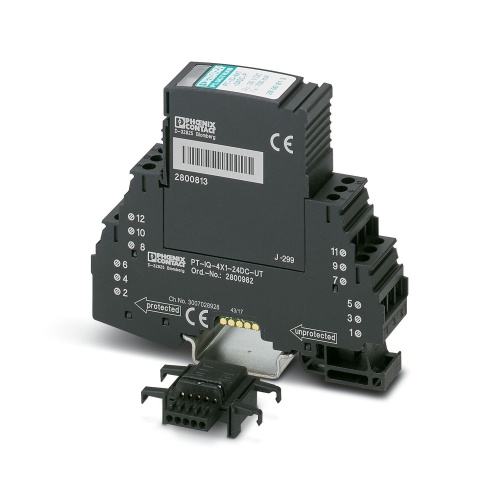

Phoenix Contact 2800982 Surge protection device PT-IQ-4X1-24DC-UT
Normally In Stock
PT-IQ-4X1-24DC-UT Phoenix 2800982 Surge protection for measurement and control technology 24 VDC Screw connection,DIN rail NS35 Surge protection device Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$439.99
Sale Price
$366.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

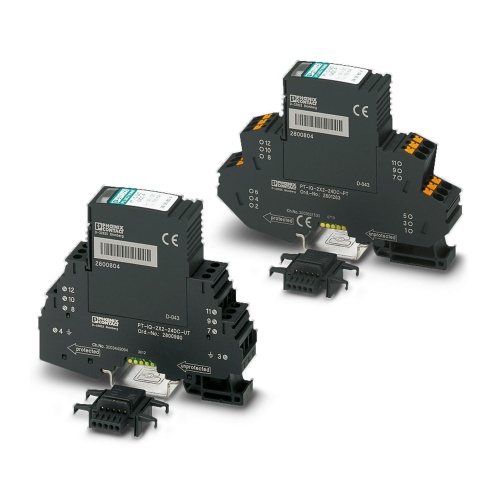

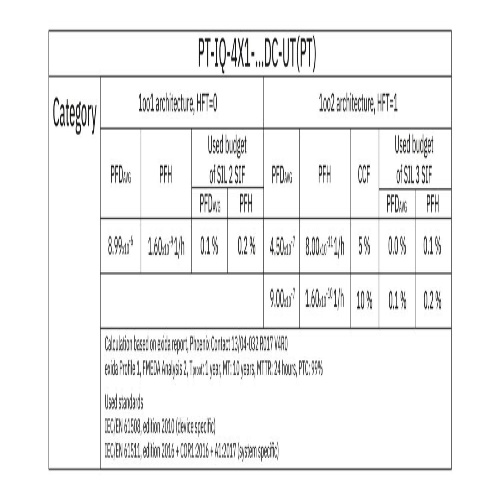

Phoenix Contact 2800982 A surge protection system comprising a protective plug and base unit is available, featuring a built-in multi-stage status indicator that provides information on the condition of the module for all four signal wires connected to a shared ground potential. This type of surge protection can be utilized in critical safety applications up to SIL 3 (Safety Integrity Level 3) standard.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Arrester Class according to IEC
PV II
Arrester Class according to IEC
PV T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
PV Arrester
Nominal Discharge Current
15 Ka
Component
Surge Protection Device
Features
Predictive monitoring with 3-stage LED display

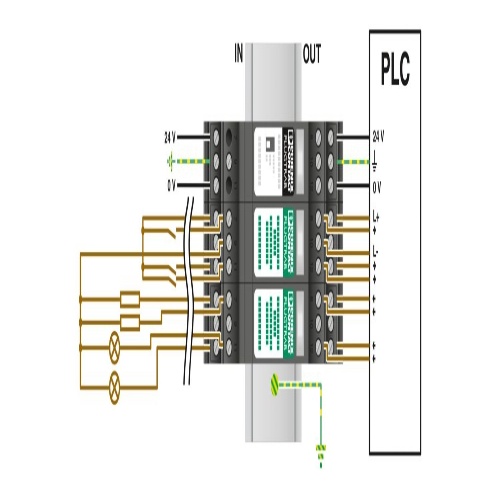

Integration of the status message into the system controller via group remote signaling
Install quickly and error-free with DIN rail connectors
Maximum ease of maintenance, thanks to the 2-piece design
Maximum protection for MCR applications with high discharge capacity
Downloads
Phoenix 2800982 CAD data International.dxfPhoenix 2800982 CAD data International.pdfPhoenix 2800982 CAD data International.stpPhoenix 2800982 Flyer English-2.pdfPhoenix 2800982 Flyer English.pdfPhoenix 2800982 Manufacturers declaration English.pdfPhoenix 2800982 Manufacturers declaration International.pdfPhoenix 2800982 Package Slip International.pdfPhoenix 2800982 Product Information English.pdfPhoenix 2800982 Software International.zipPhoenix 2800982 Surge Protection English.pdfPhoenix 2800982 Tender Text English.zip
