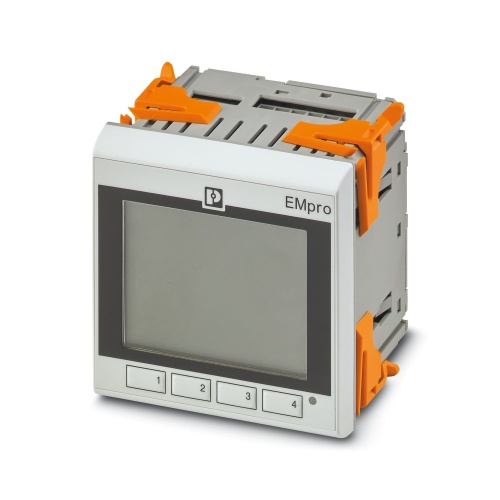

Phoenix Contact 2908285 Measuring device EEM-MA771-R
Normally In Stock
Code: 71563
EEM-MA771-R Phoenix 2908285 Energy meter Modbus/TCP,REST RJ45,Screw connection Monitoring
Condition: New
Usually ships within 7-14 days. Call for ship time.$625.45
Sale Price
$521.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2908285 The EMPro is a versatile, multi-functional energy measuring device that can be easily connected to a Rogowski coil, allowing it to accurately measure electrical parameters in low-voltage installations with voltages up to 690V, and also features an integrated Modbus interface for remote communication.
Specifications
Monitoring Interface
REST
Monitoring Input Signal
2 Ma - 15 Ma
Monitoring Interface
Modbus-TCP
Monitoring Connection Method
Screw Connection
Monitoring Voltage Measurement
35 V AC ... 690 V AC (Phase-Phase)
Monitoring Voltage Measurement
20 V AC ... 400 V AC (Phase-Neutral Conductor)
Monitoring Voltage Measurement
60 V AC ... 2000000 V AC (Primary)
Monitoring Voltage Measurement
60 V AC ... 400 V AC (Secondary)
Monitoring Supply Voltage
100 V AC - 400 V AC
Monitoring Supply Voltage
150 V DC - 250 V DC (±20 %)
Manufacturer
Phoenix Contact
Component
Energy Meter
Features
Energy measuring in just three steps with intuitive installation assistants

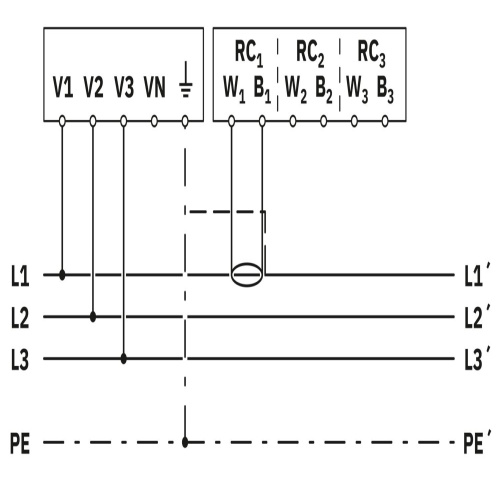

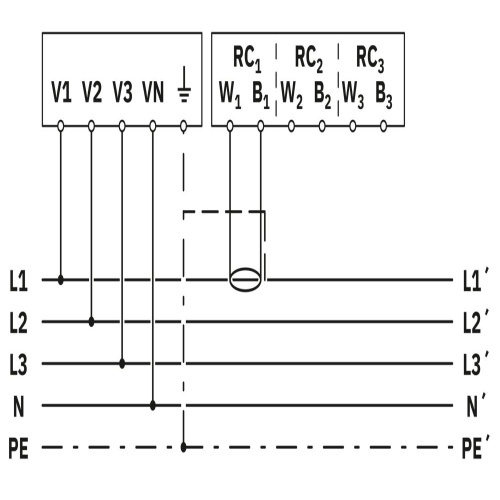

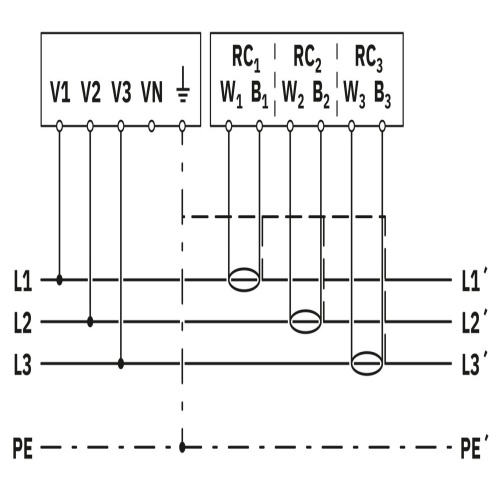

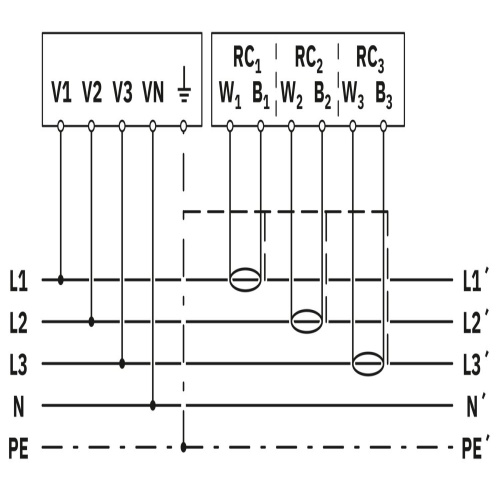

Reduce wiring and configuration effort with direct connection to conventional Rogowski coils
Easy commissioning and service with smart web server and display functions
Data protection through the targeted deactivation of button configuration functions and interfaces
Fast integration into control and management systems with future-oriented communication solutions and digital services
Downloads
Phoenix 2908285 Application Note English.pdfPhoenix 2908285 CAD data International.dxfPhoenix 2908285 CAD data International.pdfPhoenix 2908285 CAD data International.stpPhoenix 2908285 Function Module International.msiPhoenix 2908285 Manual English.pdfPhoenix 2908285 Manufacturers declaration English.pdfPhoenix 2908285 Manufacturers declaration International.pdfPhoenix 2908285 Package Slip International.pdfPhoenix 2908285 Product Information English.pdfPhoenix 2908285 Quick Start Guide International.pdfPhoenix 2908285 Tender Text English.zipPhoenix 2908285 Various International.zip
