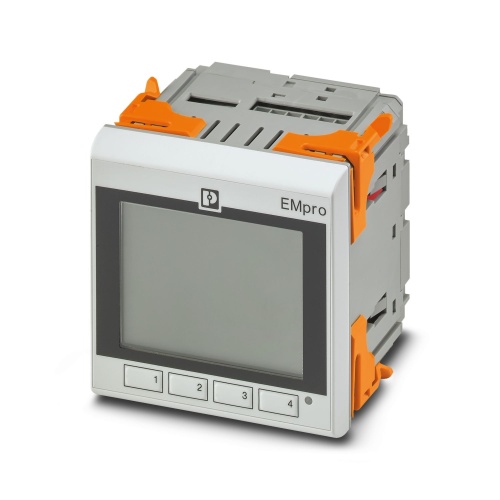

Phoenix Contact 2908301 Measuring device EEM-MA771-PN
Normally In Stock
Code: 71546
EEM-MA771-PN Phoenix 2908301 Energy meter Modbus/TCP,REST RJ45,Screw connection Monitoring
Condition: New
Usually ships within 7-14 days. Call for ship time.$948.23
Sale Price
$790.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2908301 A multifunctional energy measuring device with a direct Rogowski connection, the device features integrated Modbus/TCP and PROFINET interfaces, enabling it to accurately measure electrical parameters in low-voltage electrical installations ranging from 0-690V.
Specifications
Monitoring Interface
REST
Monitoring Input Signal
2 Ma - 15 Ma
Monitoring Interface
Modbus-TCP
Monitoring Connection Method
Screw Connection
Monitoring Voltage Measurement
35 V AC ... 690 V AC (Phase-Phase)
Monitoring Voltage Measurement
20 V AC ... 400 V AC (Phase-Neutral Conductor)
Monitoring Voltage Measurement
60 V AC ... 2000000 V AC (Primary)
Monitoring Voltage Measurement
60 V AC ... 400 V AC (Secondary)
Monitoring Supply Voltage
100 V AC - 400 V AC
Monitoring Supply Voltage
150 V DC - 250 V DC (±20 %)
Manufacturer
Phoenix Contact
Component
Energy Meter
Features
Energy measuring in just three steps with intuitive installation assistants
Reduce wiring and configuration effort with direct connection to conventional Rogowski coils
Easy commissioning and service with smart web server and display functions
Data protection through the targeted deactivation of button configuration functions and interfaces
Fast integration into control and management systems with future-oriented communication solutions and digital services
Downloads
Phoenix 2908301 Application Note English.pdfPhoenix 2908301 CAD data International.dxfPhoenix 2908301 CAD data International.pdfPhoenix 2908301 CAD data International.stpPhoenix 2908301 Function Module International.msiPhoenix 2908301 Manual English.pdfPhoenix 2908301 Manufacturers declaration English.pdfPhoenix 2908301 Manufacturers declaration International.pdfPhoenix 2908301 Package Slip International.pdfPhoenix 2908301 Product Information English.pdfPhoenix 2908301 Quick Start Guide International.pdfPhoenix 2908301 Software International.zipPhoenix 2908301 Tender Text English.zipPhoenix 2908301 Various International.zip
