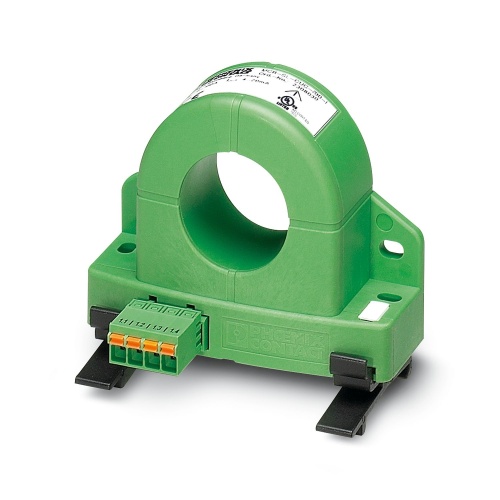

Phoenix Contact 2308030 Universal current transducer MCR-SL-CUC-200-I
Normally In Stock
Code: 71542
MCR-SL-CUC-200-I Phoenix 2308030 Current transducer 200 Amp Cable design: 32 mm diameter,Push-in connection Monitoring
Condition: New
Usually ships Same Day or Next Day$437.24
Sale Price
$364.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2308030 A universal current transducer is capable of accurately measuring both AC and DC as well as distorted currents within a range of 0 to 200 amps. Its output signal can be detected at levels ranging from 4 to 20 milliamps.
Specifications

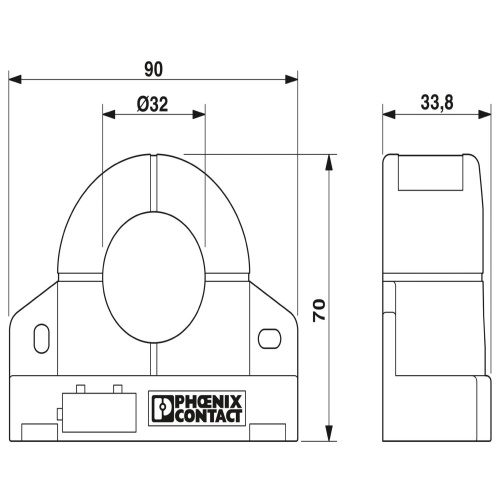

Monitoring Circular Conductor Dimensions
32 mm

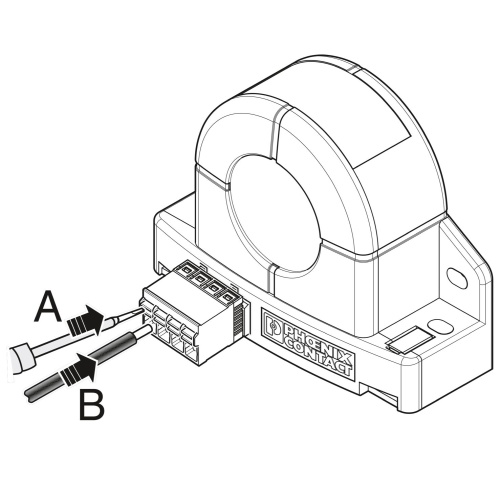

Monitoring Connection Method
Push-In Connection
Monitoring Supply Voltage
20 V DC - 30 V DC
Monitoring Primary Rated Current
200 Amp
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transducer
Monitoring Input Current Range
0 Amp - 200 Amp
Features
3-way isolation
Compact dimensions also enable distributed use
Simple connection technology thanks to COMBICON plug-in connection terminal blocks
Variable mounting on DIN rail and mounting panel
Universal current measurement, no shunt required
