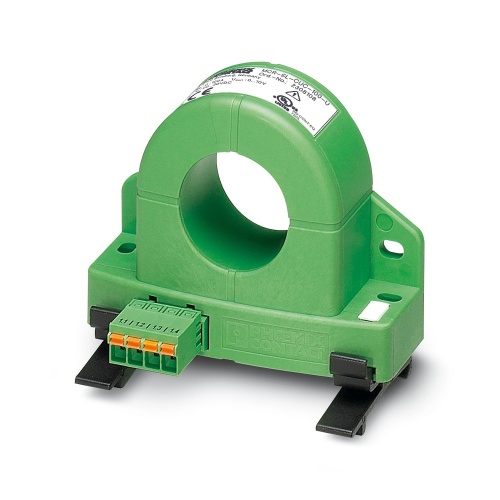

Phoenix Contact 2308108 Universal current transducer MCR-SL-CUC-100-U
Normally In Stock
Code: 71530

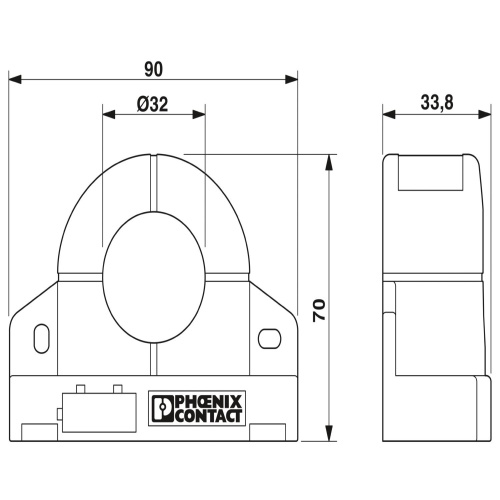

MCR-SL-CUC-100-U Phoenix 2308108 Current transducer Cable design: 32 mm diameter,Push-in connection Monitoring
Condition: New
Usually ships within 7-14 days. Call for ship time.$420.52
Sale Price
$350.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

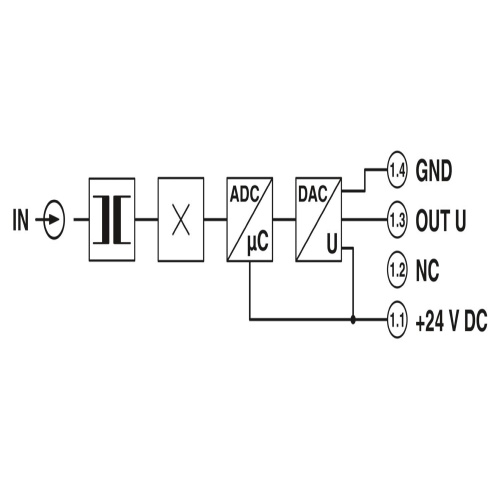

Phoenix Contact 2308108 A universal current transducer is capable of measuring both DC and AC as well as distorted currents across a range from 0 to 100 Amps of input current, with an output voltage ranging between 0 to 10 Volts.
Specifications
Monitoring Connection Method
Push-In Connection
Monitoring Supply Voltage
20 V DC - 30 V DC
Manufacturer
Phoenix Contact
Component
Current Transducer
Monitoring Input Current Range
0 Amp - 100 Amp
Features
3-way isolation
Compact dimensions also enable distributed use

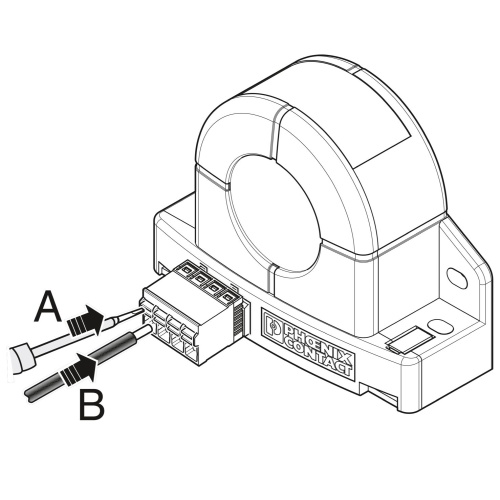

Simple connection technology thanks to COMBICON plug-in connection terminal blocks
Variable mounting on DIN rail and mounting panel
Universal current measurement, no shunt required
Downloads
Phoenix 2308108 CAD data International.dxfPhoenix 2308108 CAD data International.pdfPhoenix 2308108 CAD data International.stpPhoenix 2308108 Manufacturers declaration English.pdfPhoenix 2308108 Manufacturers declaration International.pdfPhoenix 2308108 Product Information English.pdfPhoenix 2308108 Tender Text English.zip
