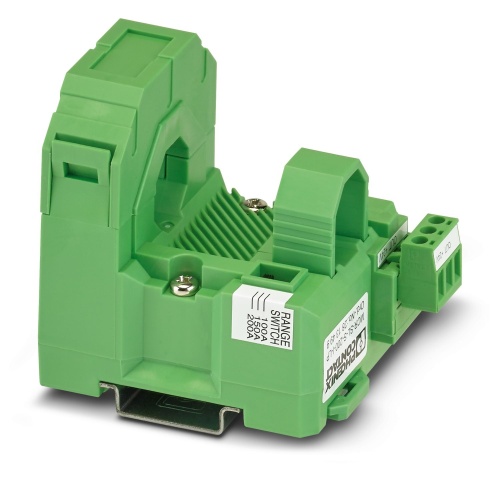

Phoenix Contact 2813499 Current measuring transducer MCR-SL-S-200-I-LP
Normally In Stock
Code: 71525
MCR-SL-S-200-I-LP Phoenix 2813499 Current transducer Pluggable screw connection Monitoring
Condition: New
Usually ships Same Day or Next Day$399.16
Sale Price
$332.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

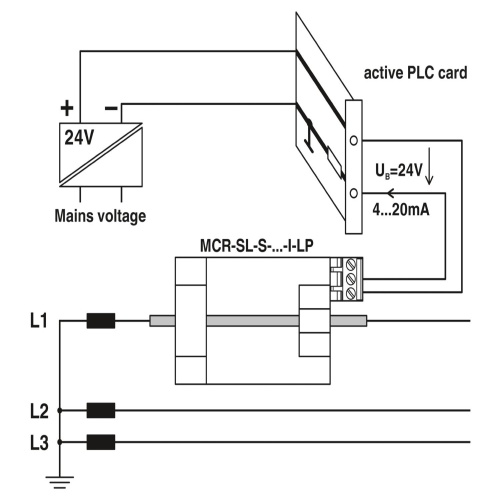

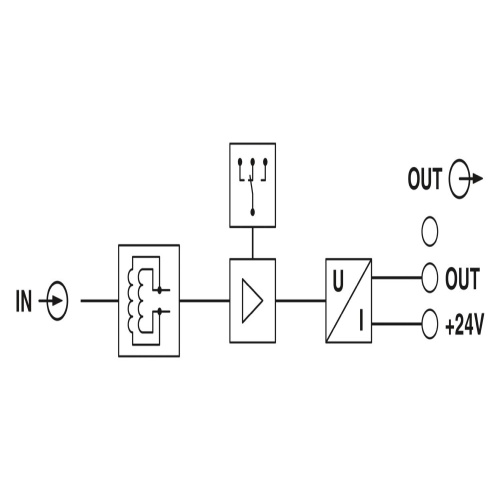

Phoenix Contact 2813499 The MCR current measuring transducer is designed to measure both sinusoidal and non-sinusoidal alternating currents, capable of handling input currents between 0-200 A. It provides a loop-powered output that produces a 4-20 mA signal.
Specifications
Monitoring Circular Conductor Dimensions
18.5 mm
Monitoring Connection Method
Screw Connection
Monitoring Supply Voltage
12 V DC - 24 V DC
Manufacturer
Phoenix Contact
Component
Current Transducer
Monitoring Input Current Range
0 Amp - 200 Amp (0 - 100-150-200 Amp)
Features
Measuring range selection via slide switch
Loop-powered
30 ... 6000 Hz true r.m.s. value measurement
Can be retrofitted with open-up Rogowski coil
Downloads
Phoenix 2813499 CAD data International.dxfPhoenix 2813499 CAD data International.pdfPhoenix 2813499 CAD data International.stpPhoenix 2813499 Data Sheet English.pdfPhoenix 2813499 Manufacturers declaration English.pdfPhoenix 2813499 Manufacturers declaration International.pdfPhoenix 2813499 Package Slip International.pdfPhoenix 2813499 Tender Text English.zip
