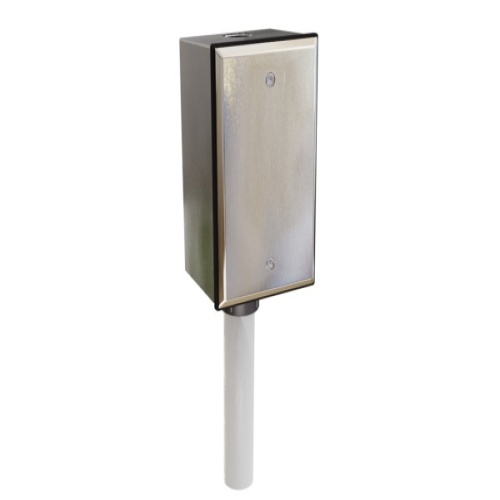

ACI 148892 RH Outside Air Platinum RTDs
Normally In Stock
Code: 715209
ACI 148892 Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Outside Air, ± 2% Accuracy, 1,000 Ohm RTD (Three Wires), NEMA 3R Enclosure
Condition: New
Usually ships Same Day or Next Day$216.22
Sale Price
$180.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ACI 148892 Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Outside Air, ± 2% Accuracy, 1,000 Ohm RTD (Three Wires), NEMA 3R Enclosure
Specifications
Manufacturer
ACI
Component
Humidity
(Instrument-Sensor) Measurement Accuracy
2%
(Instrument-Sensor) Output Signal Range
4 - 20 mAmp
(Instrument-Sensor) Output Signal Range
0-10 VDC
(Instrument-Sensor) Output Signal Range
0-5 VDC
Features
The ACI Relative Humidity with Platinum RTD Outside Air Series utilizes a thermoset polymer capacitive sensing element with factory applied hygroscopic filter to deliver a proportional analog current or voltage output signal
The hygroscopic filter provides added resistance to moisture, dust, and other chemicals for greater long term reliability
The RH Outside Air transmitter features integral DIP switches for field selection of the proper output signal and supply voltage to meet your applications requirements
Each unit also contains 0%, 50%, and 100% test options to verify that the transmitter is both working and wired properly
Field calibration also can be performed by using the increment and decrement calibration DIP switches without the need to replace the sensing element
These enhancements provide increased flexibility and outstanding long-term reliability

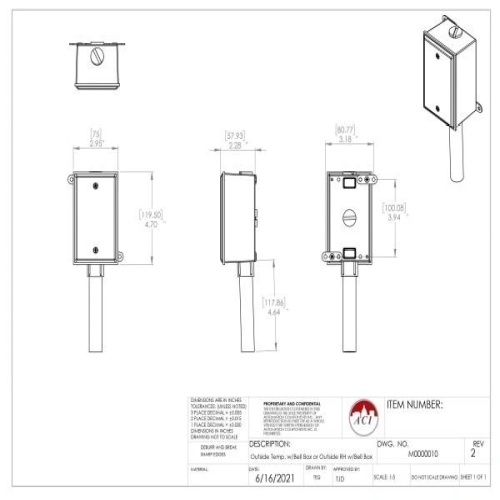

Outside Air configurations feature a weatherproof Euro style enclosure with gasketed cover and conformally coated circuit boards for added moisture and chemical resistance
Three point NIST Calibration Certificates are available.
Code: 715209
ACI 148892 RH Outside Air Platinum RTDs
