ACI 148820 RH Remote Probes
Normally In Stock
Code: 715202
ACI 148820 Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Remote Probe, ± 3% Accuracy, 6' Plenum
Condition: New
Usually ships Same Day or Next Day$349.27
Sale Price
$291.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ACI 148820 Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Remote Probe, ± 3% Accuracy, 6' Plenum
Specifications
Manufacturer
ACI
Component
Humidity
(Instrument-Sensor) Measurement Accuracy
3%
(Instrument-Sensor) Output Signal Range
4 - 20 mAmp
(Instrument-Sensor) Output Signal Range
0-10 VDC
(Instrument-Sensor) Output Signal Range
0-5 VDC
Features

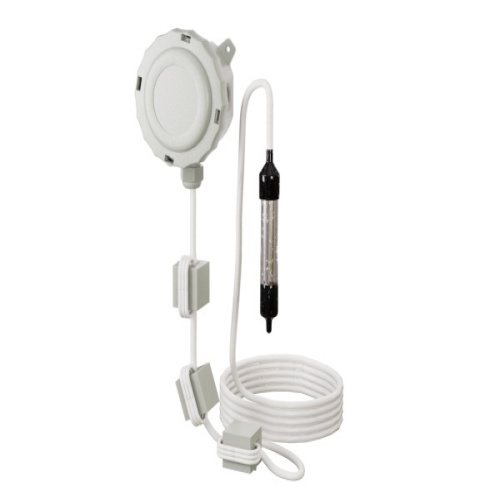

The ACI Relative Humidity Remote Probe utilizes a thermoset polymer capacitive sensing element with a hydrophobic filter to deliver a proportional relative humidity analog output The remote probe wiring harness comes in lengths of 3, 6, 10, or 20 feet to provide mounting flexibility for your remote sensing applications
Single point field calibration can be done on the humidity transmitter, by using the increment and decrement dip switches
Each toggle of the increment and decrement switches will allow for a ±0.5% RH increase or decrease
Calibration of the RH transmitters electronics can also be done using both the Zero and Span potentiometers depending on whether it is a current or voltage output device
All models feature conformally coated circuit boards to improve the reliability of the product in both high moisture and mildly corrosive atmospheres
A vinyl cap is provided to place over the sintered filter in wash down applications to protect the sensing element from getting moisture sprayed directly on the sensor
Three point NIST Calibration Certificates are available.
