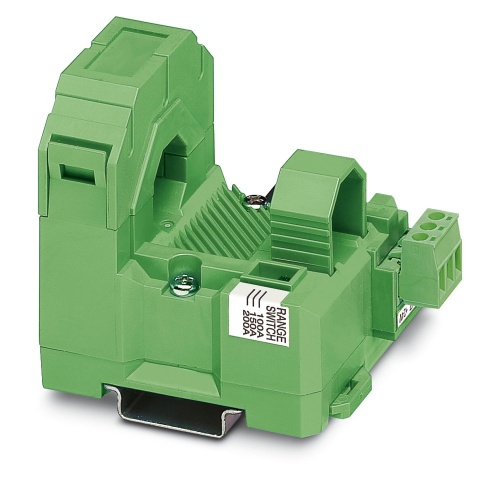

Phoenix Contact 2813460 Current measuring transducer MCR-SL-S-200-U
Normally In Stock
Code: 71519
MCR-SL-S-200-U Phoenix 2813460 Current transducer Pluggable screw connection Monitoring
Condition: New
Usually ships within 7-14 days. Call for ship time.$392.03
Sale Price
$326.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2813460 The MCR current measuring transducer is capable of accurately measuring both sinusoidal and non-sinusoidal alternating currents, with an input range of 0 to 200 amps. The output voltage ranges from 0 to 5 volts, providing a reliable and precise signal for monitoring purposes.
Specifications
Monitoring Circular Conductor Dimensions
18.5 mm
Monitoring Connection Method
Screw Connection
Manufacturer
Phoenix Contact
Component
Current Transducer
Monitoring Input Current Range
0 Amp - 200 Amp (0 - 100-150-200 Amp)
Features
30 ... 6000 Hz true r.m.s. value measurement
Measuring range selection via slide switch
Can be retrofitted with open-up Rogowski coil
Downloads
Phoenix 2813460 CAD data International.dxfPhoenix 2813460 CAD data International.pdfPhoenix 2813460 CAD data International.stpPhoenix 2813460 Data Sheet English.pdfPhoenix 2813460 Manufacturer's declaration English.pdfPhoenix 2813460 Manufacturer's declaration International.pdfPhoenix 2813460 Manufacturers declaration English.pdfPhoenix 2813460 Manufacturers declaration International.pdfPhoenix 2813460 Package Slip International.pdfPhoenix 2813460 Tender Text English.zip
