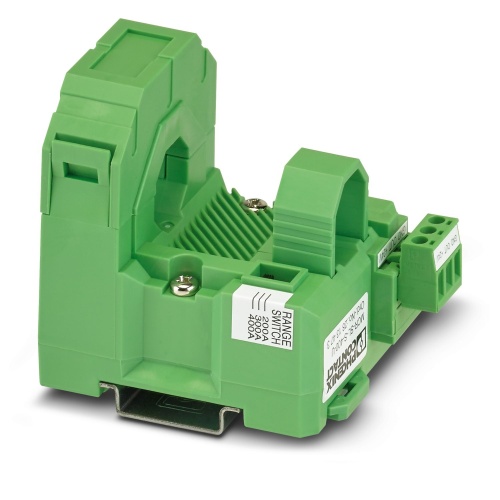

Phoenix Contact 2813473 Current measuring transducer MCR-SL-S-400-U
Normally In Stock
Code: 71517
MCR-SL-S-400-U Phoenix 2813473 Current transducer Pluggable screw connection Monitoring
Condition: New
Usually ships within 7-14 days. Call for ship time.$392.03
Sale Price
$326.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2813473 The MCR current measuring transducer can measure both sinusoidal and non-sinusoidal alternating currents, with an input current range of 0 to 400 amperes and an output voltage range of 0 to 5 volts.
Specifications

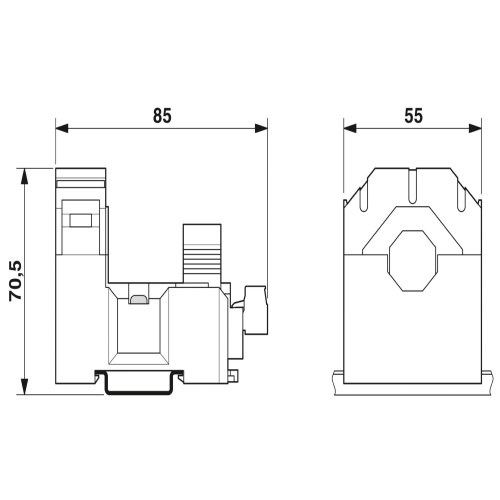

Monitoring Circular Conductor Dimensions
18.5 mm
Monitoring Connection Method
Screw Connection
Manufacturer
Phoenix Contact
Component
Current Transducer
Monitoring Input Current Range
0 Amp - 400 Amp (0 - 200-300-400 Amp)
Features
30 ... 6000 Hz true r.m.s. value measurement
Measuring range selection via slide switch
Can be retrofitted with open-up Rogowski coil
Downloads
Phoenix 2813473 CAD data International.dxfPhoenix 2813473 CAD data International.pdfPhoenix 2813473 CAD data International.stpPhoenix 2813473 Data Sheet English.pdfPhoenix 2813473 Manufacturers declaration English.pdfPhoenix 2813473 Manufacturers declaration International.pdfPhoenix 2813473 Package Slip International.pdfPhoenix 2813473 Tender Text English.zip
