Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

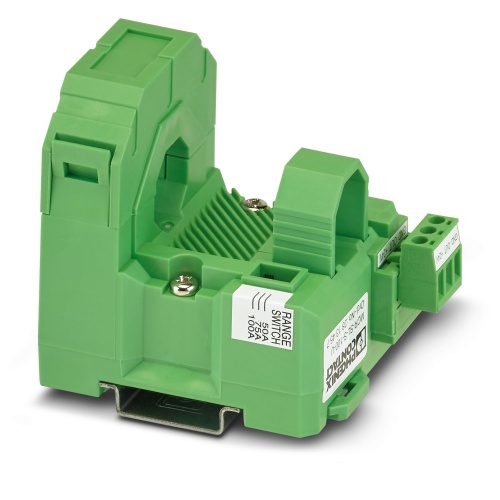

Phoenix Contact 2813457 Current measuring transducer MCR-SL-S-100-U
Normally In Stock
Code: 71515
MCR-SL-S-100-U Phoenix 2813457 Current transducer Pluggable screw connection Monitoring
Condition: New
Usually ships within 7-14 days. Call for ship time.$392.03
Sale Price
$326.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

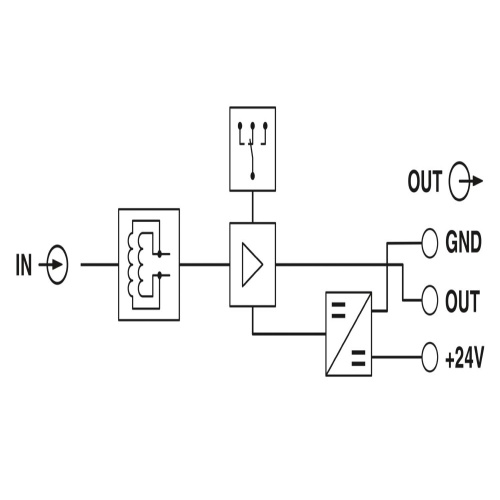

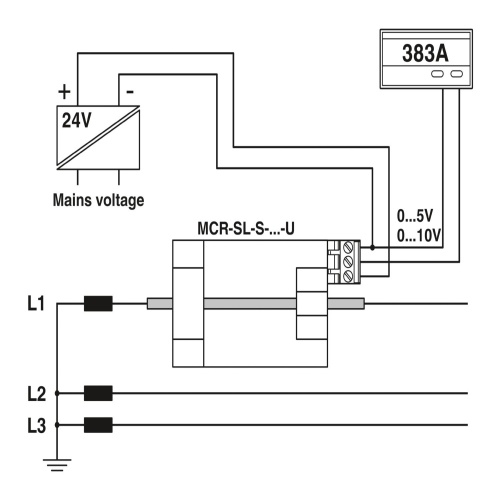

Phoenix Contact 2813457 The MCR current measuring transducer is designed to accurately measure both sinusoidal and non-sinusoidal alternating currents. It accepts inputs within the range of 0 to 100 amperes and produces an output voltage between 0 and 10 volts, indicating the precise level of electrical current being detected.
Specifications

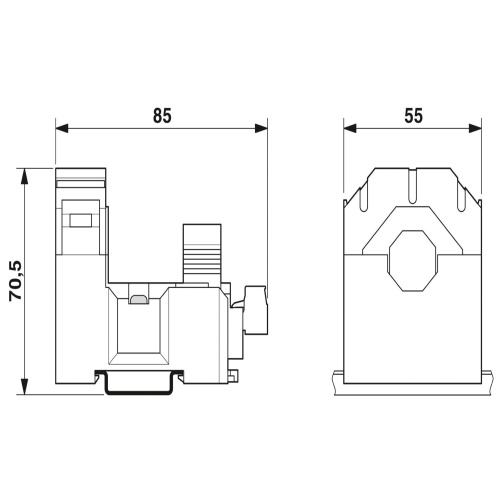

Monitoring Circular Conductor Dimensions
18.5 mm
Monitoring Connection Method
Screw Connection
Manufacturer
Phoenix Contact
Component
Current Transducer
Monitoring Input Current Range
0 Amp - 100 Amp (0 - 50-75-100 Amp)
Features
30 ... 6000 Hz true r.m.s. value measurement
Measuring range selection via slide switch
Can be retrofitted with open-up Rogowski coil
Downloads
Phoenix 2813457 CAD data International.dxfPhoenix 2813457 CAD data International.pdfPhoenix 2813457 CAD data International.stpPhoenix 2813457 Data Sheet English.pdfPhoenix 2813457 Manufacturers declaration English.pdfPhoenix 2813457 Manufacturers declaration International.pdfPhoenix 2813457 Package Slip International.pdfPhoenix 2813457 Tender Text English.zip
