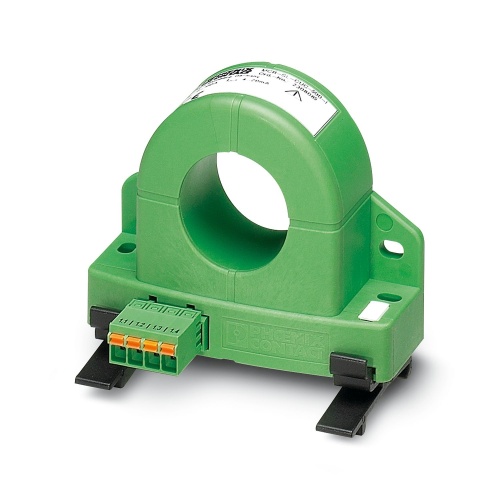

Phoenix Contact 2308085 Universal current transducer MCR-SL-CUC-500-I
Normally In Stock
Code: 71514
MCR-SL-CUC-500-I Phoenix 2308085 Current transducer 500 Amp Cable design: 32 mm diameter,Push-in connection Monitoring
Condition: New
Usually ships Same Day or Next Day$559.88
Sale Price
$466.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2308085 A universal current transducer is capable of accurately measuring both direct current (DC) and alternating current (AC), as well as detecting distorted currents. It can handle input currents ranging from 0 to 500 amperes and outputs a signal between 4 and 20 milliamps, allowing for precise measurement and recording of electrical current values.
Specifications

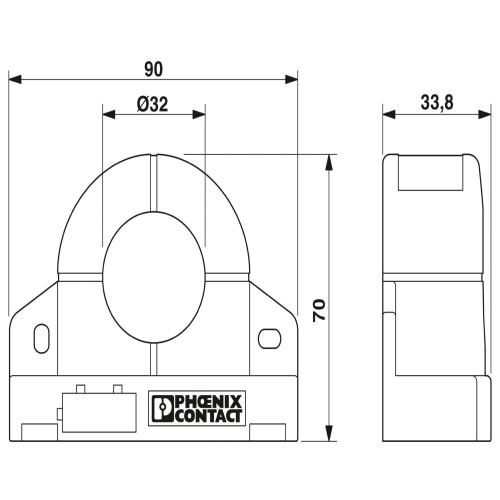

Monitoring Circular Conductor Dimensions
32 mm
Monitoring Connection Method
Push-In Connection
Monitoring Supply Voltage
20 V DC - 30 V DC
Monitoring Primary Rated Current
500 Amp
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transducer
Monitoring Input Current Range
0 Amp - 500 Amp
Features
3-way isolation
Compact dimensions also enable distributed use

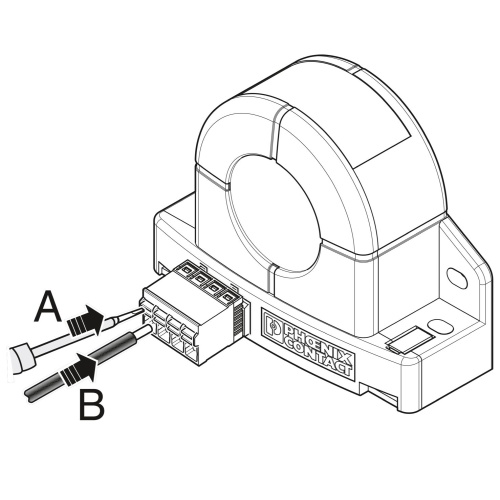

Simple connection technology thanks to COMBICON plug-in connection terminal blocks
Variable mounting on DIN rail and mounting panel
Universal current measurement, no shunt required
