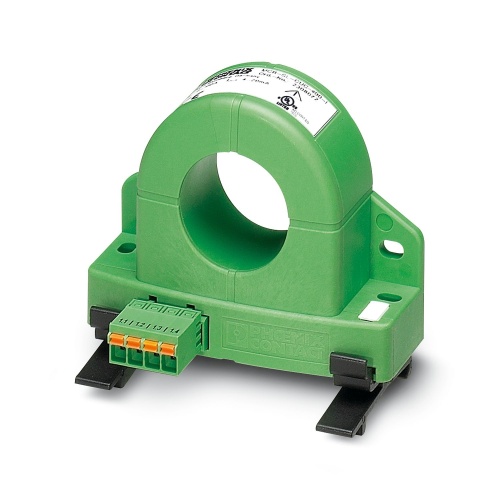

Phoenix Contact 2308072 Universal current transducer MCR-SL-CUC-400-I
Normally In Stock
Code: 71513
MCR-SL-CUC-400-I Phoenix 2308072 Current transducer 400 Amp Cable design: 32 mm diameter,Push-in connection Monitoring
Condition: New
Usually ships within 7-14 days. Call for ship time.$543.98
Sale Price
$453.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2308072 A universal current transducer is capable of measuring both direct current (DC) and alternating current (AC), as well as non-standard or distorted current waveforms, with an input range of 0 to 400 amps and an output signal scale of 4 to 20 milliamps.
Specifications

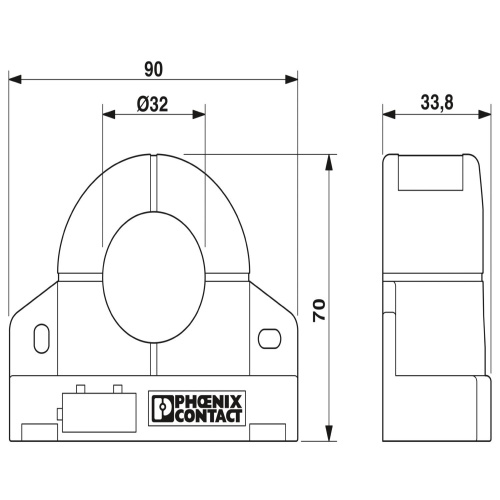

Monitoring Circular Conductor Dimensions
32 mm
Monitoring Connection Method
Push-In Connection
Monitoring Supply Voltage
20 V DC - 30 V DC
Monitoring Primary Rated Current
400 Amp
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transducer
Monitoring Input Current Range
0 Amp - 400 Amp
Features
3-way isolation
Compact dimensions also enable distributed use

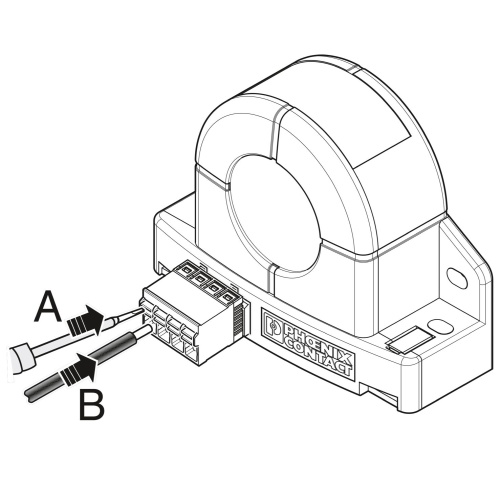

Simple connection technology thanks to COMBICON plug-in connection terminal blocks
Variable mounting on DIN rail and mounting panel
Universal current measurement, no shunt required
