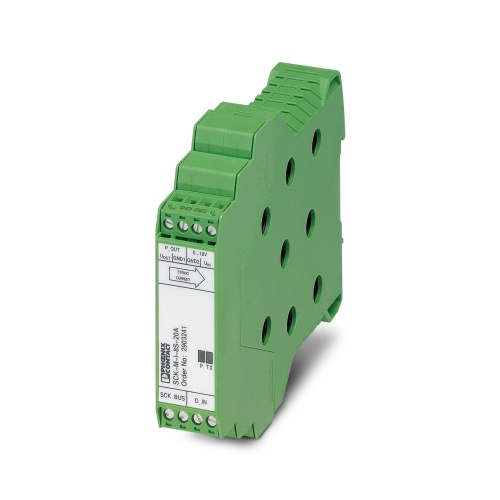

Phoenix Contact 2903241 PV string monitoring module SCK-M-I-8S-20A
Normally In Stock
Code: 71509
SCK-M-I-8S-20A Phoenix 2903241 Current transducer Through connection, 9.5 mm diameter,Screw connection Monitoring
Condition: New
Usually ships within 7-14 days. Call for ship time.$501.72
Sale Price
$418.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

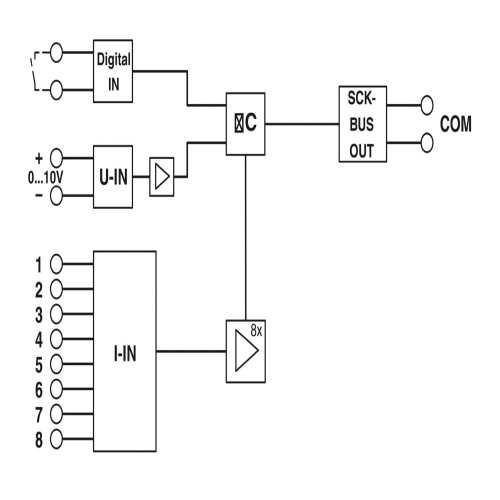

Phoenix Contact 2903241 A SCK measuring module designed specifically for monitoring photovoltaic systems features eight channels for current measurement, each capable of detecting up to 20 amps, one digital input channel, and interfaces that enable communication with both an SCK communication module and a separate voltage measuring module.
Specifications
Monitoring Connection Method
Screw Connection
Manufacturer
Phoenix Contact
Component
Current Transducer
Monitoring Input Current Range
0 Amp DC - 20 Amp (UL: 0 Amp DC...25 Amp DC)
Features
Low costs and wiring outlay, because an additional power supply unit is not needed in the device connection box
Design flexibility with 4 and 8-channel versions for string boxes
Space-saving installation with the compact design
Easy integration into monitoring systems via Modbus/RTU communication
Remote indication contact monitoring with an additional digital input
Downloads
Phoenix 2903241 CAD data International.dxfPhoenix 2903241 CAD data International.pdfPhoenix 2903241 CAD data International.stpPhoenix 2903241 Manual English.pdfPhoenix 2903241 Manufacturers declaration English.pdfPhoenix 2903241 Manufacturers declaration International.pdfPhoenix 2903241 Package Slip International.pdfPhoenix 2903241 Product Information English.pdfPhoenix 2903241 Tender Text English.zip
