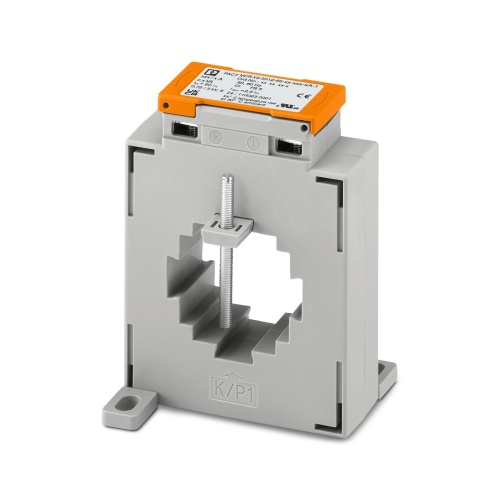

Phoenix Contact 2276146 Current transformer PACT MCR-V2-5012- 85- 300-5A-1
Normally In Stock
Code: 71499
PACT MCR-V2-5012- 85- 300-5A-1 Phoenix 2276146 Current transformer 0 Amp - 300 Amp Plug-on converters Screw connection Monitoring
Condition: New
Usually ships Same Day or Next Day$77.29
Sale Price
$64.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2276146 A window-type current transformer is designed to handle high currents with an accuracy class of 1, indicating precise measurement, and is rated for a power consumption of up to 10 VA, while having a primary current capacity of 300 A AC and a secondary current output of just 5 A AC.
Specifications
Monitoring Circular Conductor Dimensions
42 mm
Monitoring Rated Power
10 VA
Monitoring Connection Method
Screw Connection
Monitoring Type
Plug-On Converters
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 300 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads
Phoenix 2276146 CAD data International.dxfPhoenix 2276146 CAD data International.pdfPhoenix 2276146 CAD data International.stpPhoenix 2276146 E-Learning English.wmvPhoenix 2276146 Manufacturers declaration English.pdfPhoenix 2276146 Manufacturers declaration International.pdfPhoenix 2276146 Package Slip International.pdfPhoenix 2276146 Tender Text English.zip
