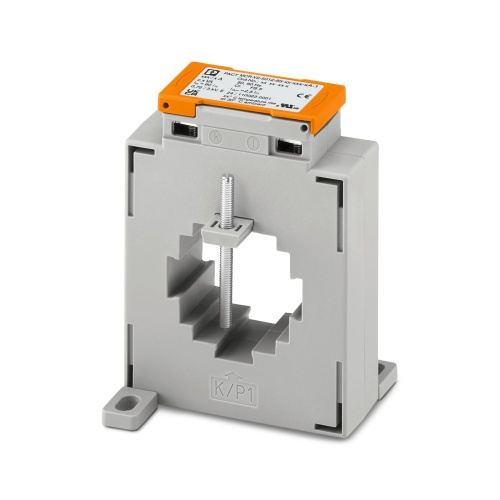

Phoenix Contact 2276188 Current transformer PACT MCR-V2-5012- 85-1500-5A-1
Normally In Stock
Code: 71490
PACT MCR-V2-5012- 85-1500-5A-1 Phoenix 2276188 Current transformer 0 Amp - 1500 Amp Plug-on converters Screw connection Monitoring
Condition: New
Usually ships Same Day or Next Day$55.42
Sale Price
$46.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2276188 The given device is a window-type current transformer with specific characteristics. It has an AC primary current rating of 1500A and an AC secondary current rating of 5A, allowing for precise measurements in high-current applications. With its accuracy classification as Class 1, it provides reliable and precise output readings. Additionally, the rated power of 15VA makes it suitable for use in various electrical systems and applications requiring accurate current measurement.
Specifications
Monitoring Rated Power
15 VA
Monitoring Circular Conductor Dimensions
42 mm
Monitoring Connection Method
Screw Connection
Monitoring Type
Plug-On Converters
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 1500 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads
Phoenix 2276188 CAD data International.dxfPhoenix 2276188 CAD data International.pdfPhoenix 2276188 CAD data International.stpPhoenix 2276188 E-Learning English.wmvPhoenix 2276188 Manufacturers declaration English.pdfPhoenix 2276188 Manufacturers declaration International.pdfPhoenix 2276188 Package Slip International.pdfPhoenix 2276188 Tender Text English.zip
