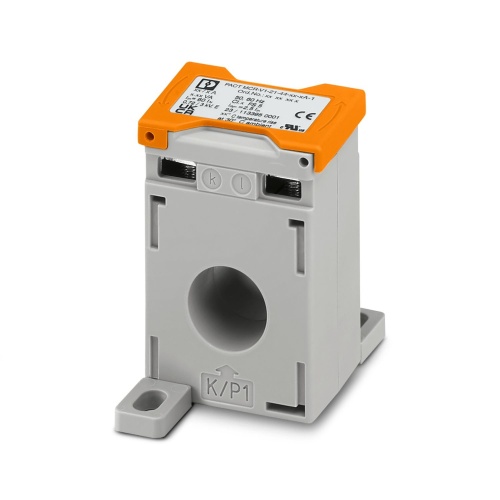

Phoenix Contact 2277019 Current transformer PACT MCR-V1-21-44- 50-5A-1
Normally In Stock
Code: 71479
PACT MCR-V1-21-44- 50-5A-1 Phoenix 2277019 Current transformer 0 Amp - 50 Amp Tube rod converter Screw connection Monitoring
Condition: New
Usually ships within 7-14 days. Call for ship time.$56.00
Sale Price
$46.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2277019 The bus-bar current transformer is designed for high-accuracy applications and can handle an AC primary current of up to 50A while outputting a corresponding AC secondary current of 5A, with an accuracy rating of Class 1 ensuring precise measurements. It is also rated for a maximum power consumption of 1.25VA.
Specifications
Monitoring Rated Power
1.25 VA
Monitoring Circular Conductor Dimensions
21 mm
Monitoring Connection Method
Screw Connection
Monitoring Type
Tube Rod Converter
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 50 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads
Phoenix 2277019 CAD data International.dxfPhoenix 2277019 CAD data International.pdfPhoenix 2277019 CAD data International.stpPhoenix 2277019 Data Sheet English.pdfPhoenix 2277019 Manufacturers declaration English.pdfPhoenix 2277019 Manufacturers declaration International.pdfPhoenix 2277019 Package Slip International.pdfPhoenix 2277019 Tender Text English.zip
