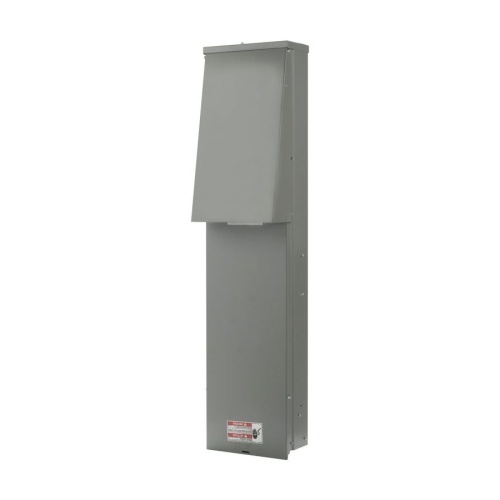

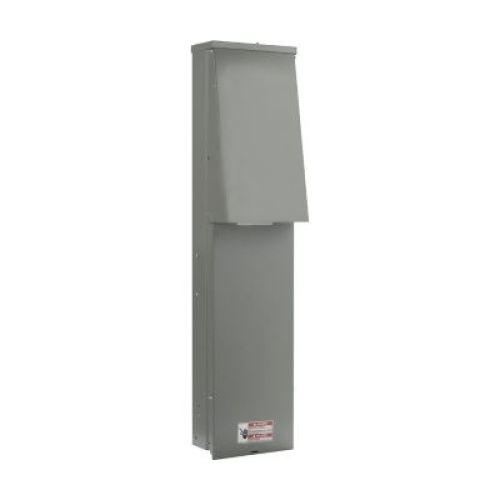

Eaton CHU1G9N3GPX - Power Pedestal, Unmetered, 6 Circuits
Normally In Stock
Code: 714788
Eaton CHU1G9N3GPX - Power Pedestal, Unmetered, 6 Circuits
Condition: New
Usually ships Same Day or Next Day$2800.93
Sale Price
$2334.11
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton CHU1G9N3GPX - pedestal mount unmetered, Power outlet panel, Left: NEMA 14-50R, Center: NEMA 5-20R2GFI WRTR, Right: NEMA 14-30R, P1 Ground fault, P2 Non-ground fault, P3 Ground fault, six-circuit
Specifications
Manufacturer
Eaton
Metering Status
Unmetered
Mounting
Pedestal
Receptable Left
NEMA 14-50R
Circuits
6
Receptable Right
NEMA 14-30R
Component
Power Pedestal
Receptable Center
NEMA 5-20R2GFI WRTR
Features
One-piece case back simplifies installation.
Loop feed lug assembly with 350 kcmil lugs as standard.
Door swings up and pushes in to lock into open position. Pull out and push down to close door, which makes for easy installation and maintenance.
Removable upper deadfront cover for easy incoming wire connections to breaker terminals.
Galvanized steel with baked-on polyester powder coating offers long-term durability in outdoor conditions.
Unique steel barrier prevents unauthorized operation of breakers when door is closed and padlocked.
