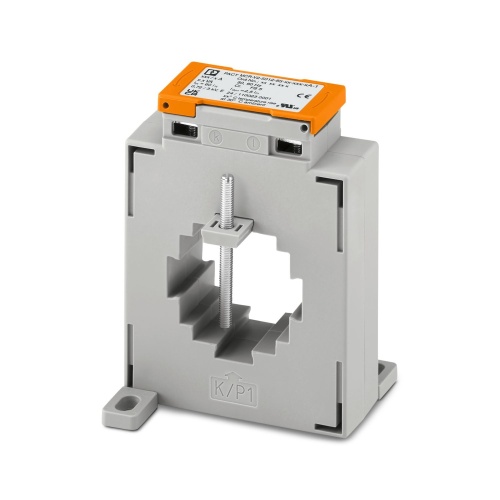

Phoenix Contact 2277174 Current transformer PACT MCR-V2-5012- 85- 600-5A-1
Normally In Stock
Code: 71475
PACT MCR-V2-5012- 85- 600-5A-1 Phoenix 2277174 Current transformer 0 Amp - 600 Amp Plug-on converters Screw connection Monitoring
Condition: New
Usually ships Same Day or Next Day$76.90
Sale Price
$64.08
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2277174 A window-type current transformer is designed to measure high currents with an accuracy of Class 1 and a rated power output of 10 VA. It features a primary side for handling up to 600 amps of AC current, while the secondary side provides an output of 5 amps of AC current, making it suitable for various applications requiring precise current measurement.
Specifications

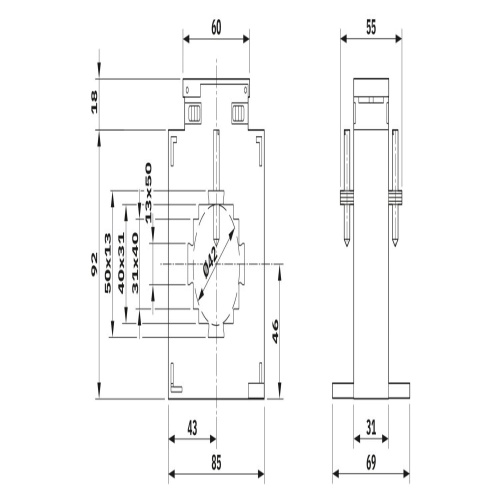

Monitoring Circular Conductor Dimensions
42 mm
Monitoring Rated Power
10 VA
Monitoring Connection Method
Screw Connection
Monitoring Type
Plug-On Converters
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 600 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads
Phoenix 2277174 CAD data International.dxfPhoenix 2277174 CAD data International.pdfPhoenix 2277174 CAD data International.stpPhoenix 2277174 Data Sheet English.pdfPhoenix 2277174 E-Learning English.wmvPhoenix 2277174 Manufacturers declaration English.pdfPhoenix 2277174 Manufacturers declaration International.pdfPhoenix 2277174 Package Slip International.pdfPhoenix 2277174 Tender Text English.zip
