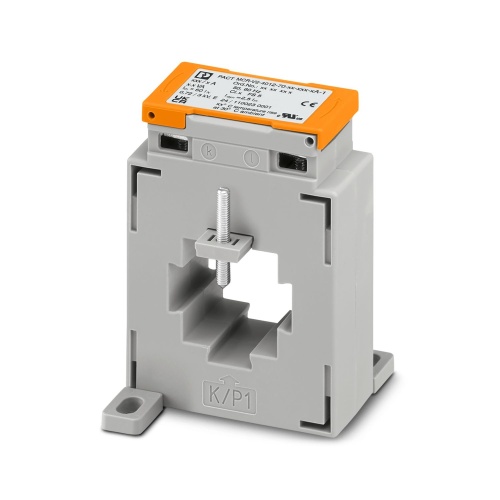

Phoenix Contact 2277682 Current transformer PACT MCR-V2-4012- 70- 500-5A-1
Normally In Stock
Code: 71474
PACT MCR-V2-4012- 70- 500-5A-1 Phoenix 2277682 Current transformer 0 Amp - 500 Amp Plug-on converters Screw connection Monitoring
Condition: New
Usually ships Same Day or Next Day$44.70
Sale Price
$37.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2277682 The specified current transformer has an AC primary current rating of 500A and a corresponding secondary current rating of 5A, designed to operate within an accuracy class 1 designation, with a maximum power handling capacity of 10VA.
Specifications
Monitoring Rated Power
10 VA
Monitoring Circular Conductor Dimensions
33 mm
Monitoring Connection Method
Screw Connection
Monitoring Type
Plug-On Converters
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 500 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads
Phoenix 2277682 CAD data International.dxfPhoenix 2277682 CAD data International.pdfPhoenix 2277682 CAD data International.stpPhoenix 2277682 E-Learning English.wmvPhoenix 2277682 Manufacturers declaration English.pdfPhoenix 2277682 Manufacturers declaration International.pdfPhoenix 2277682 Package Slip International.pdfPhoenix 2277682 Tender Text English.zip
