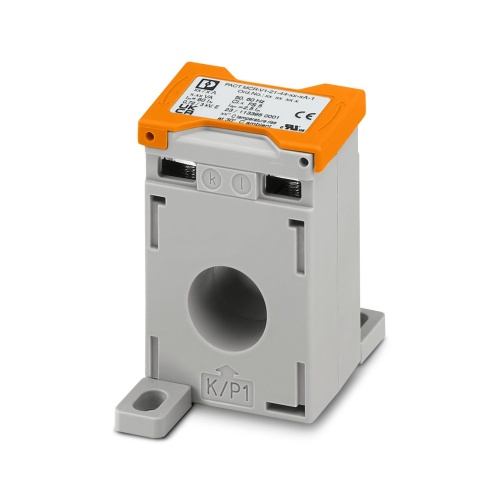

Phoenix Contact 2277051 Current transformer PACT MCR-V1-21-44-400-5A-1
Normally In Stock
Code: 71467
PACT MCR-V1-21-44-400-5A-1 Phoenix 2277051 Current transformer 0 Amp - 400 Amp Tube rod converter Screw connection Monitoring
Condition: New
Usually ships Same Day or Next Day$56.00
Sale Price
$46.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2277051 The bus-bar current transformer is a type of electrical instrument that measures high currents with high accuracy, in this case 400A for the primary side and 5A for the secondary side, with an accuracy rating of Class 1, and is designed to handle a power rating of up to 5VA.
Specifications
Monitoring Rated Power
5 VA
Monitoring Circular Conductor Dimensions
21 mm
Monitoring Connection Method
Screw Connection
Monitoring Type
Tube Rod Converter
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 400 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads
Phoenix 2277051 CAD data International.dxfPhoenix 2277051 CAD data International.pdfPhoenix 2277051 CAD data International.stpPhoenix 2277051 Data Sheet English.pdfPhoenix 2277051 Manufacturers declaration English.pdfPhoenix 2277051 Manufacturers declaration International.pdfPhoenix 2277051 Package Slip International.pdfPhoenix 2277051 Tender Text English.zip
