Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

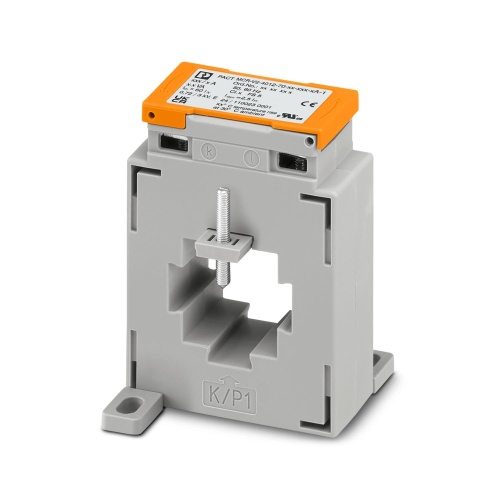

Phoenix Contact 2905882 Current transformer PACT MCR-V2-4012-70-250-1A-1
Normally In Stock
Code: 71452
PACT MCR-V2-4012-70-250-1A-1 Phoenix 2905882 Current transformer 0 Amp - 250 Amp Plug-on converters Screw connection Monitoring *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$54.00
Sale Price
$45.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2905882 A window-type current transformer with a primary rating of 250 A for alternating current and a secondary rating of 1 A is designed to meet the requirements of accuracy class 1, indicating high precision, while also having a rated power of 5 VA.
Specifications
Monitoring Rated Power
5 VA
Monitoring Circular Conductor Dimensions
33 mm
Monitoring Connection Method
Screw Connection
Monitoring Type
Plug-On Converters
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 250 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads

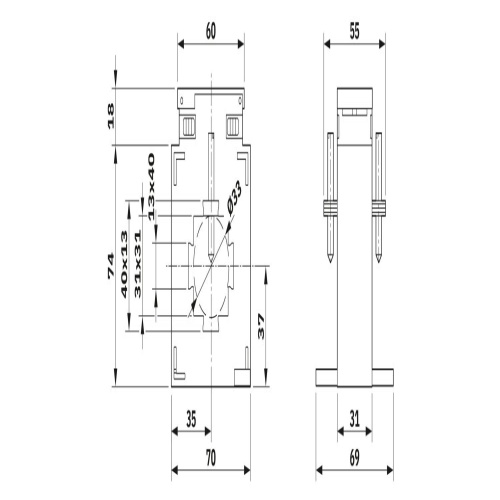

Phoenix 2905882 CAD data International.dxfPhoenix 2905882 CAD data International.pdfPhoenix 2905882 CAD data International.stpPhoenix 2905882 Manufacturers declaration English.pdfPhoenix 2905882 Manufacturers declaration International.pdfPhoenix 2905882 Package Slip International.pdfPhoenix 2905882 Tender Text English.zip
