Phoenix Contact 2277831 Current transformer PACT MCR-V2-3015- 60- 80-5A-1
Normally In Stock
Code: 71449
PACT MCR-V2-3015- 60- 80-5A-1 Phoenix 2277831 Current transformer 0 Amp - 80 Amp Plug-on converters Screw connection Monitoring
Condition: New
Usually ships within 7-14 days. Call for ship time.$34.03
Sale Price
$28.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2277831 A window-type current transformer with an 80A AC primary current and a 5A AC secondary current is designed for accurate measurement of low-current circuits, boasting an accuracy classification of 1 and a rated power of 1.25VA, allowing for reliable monitoring of electrical signals in various applications.
Specifications
Monitoring Rated Power
1.25 VA

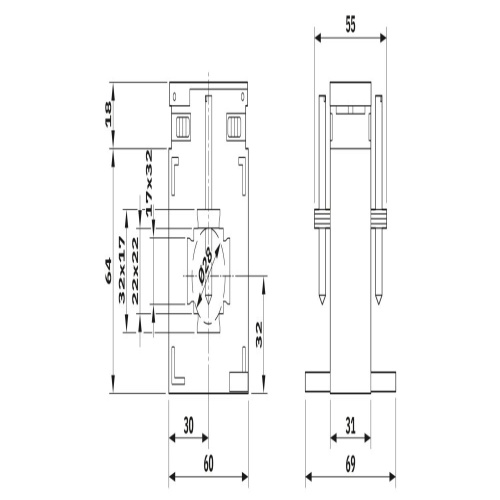

Monitoring Circular Conductor Dimensions
28 mm
Monitoring Connection Method
Screw Connection
Monitoring Type
Plug-On Converters
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 80 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads
Phoenix 2277831 CAD data International.dxfPhoenix 2277831 CAD data International.pdfPhoenix 2277831 CAD data International.stpPhoenix 2277831 E-Learning English.wmvPhoenix 2277831 Manufacturers declaration English.pdfPhoenix 2277831 Manufacturers declaration International.pdfPhoenix 2277831 Package Slip International.pdfPhoenix 2277831 Tender Text English.zip
