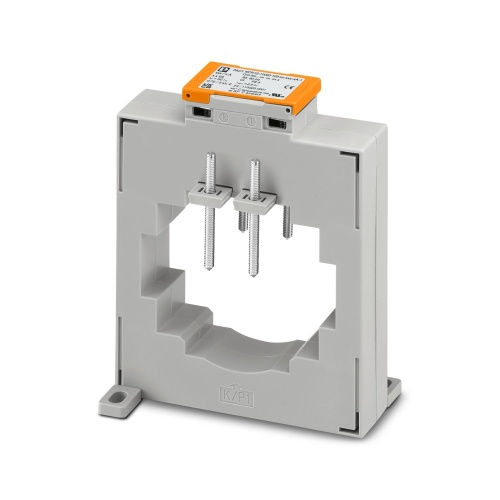

Phoenix Contact 2276395 Current transformer PACT MCR-V2-10020-129-2500-5A
Normally In Stock
Code: 71441
PACT MCR-V2-10020-129-2500-5A Phoenix 2276395 Current transformer 0 Amp - 2500 Amp Plug-on converters Screw connection Monitoring
Condition: New
Usually ships Same Day or Next Day$113.42
Sale Price
$94.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2276395 A window-type current transformer is designed for high-power applications, capable of handling up to 2500 A of AC primary current while providing a lower 5 A AC secondary current output. It falls under the accuracy class 1 category and has a rated power of 15 VA.
Specifications
Monitoring Rated Power
15 VA

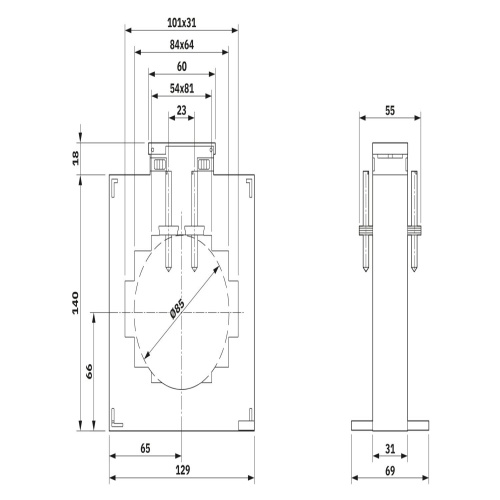

Monitoring Circular Conductor Dimensions
85 mm
Monitoring Connection Method
Screw Connection
Monitoring Type
Plug-On Converters
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 2500 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
