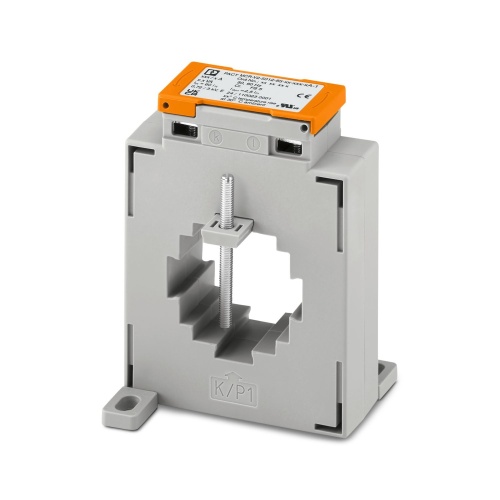

Phoenix Contact 2277200 Current transformer PACT MCR-V2-5012- 85-1250-5A-1
Normally In Stock
Code: 71426
PACT MCR-V2-5012- 85-1250-5A-1 Phoenix 2277200 Current transformer 0 Amp - 1250 Amp Plug-on converters Screw connection Monitoring
Condition: New
Usually ships Same Day or Next Day$76.90
Sale Price
$64.08
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2277200 A window-type current transformer is designed to accurately measure low currents with a specified rating, in this case 5 A for the AC secondary current and 1250 A for the AC primary current. The device has an accuracy class of 1, indicating its ability to provide precise measurements within a certain range, and it is capable of handling a maximum power rating of 15 VA.
Specifications
Monitoring Rated Power
15 VA
Monitoring Circular Conductor Dimensions
42 mm
Monitoring Connection Method
Screw Connection
Monitoring Type
Plug-On Converters
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 1250 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads
Phoenix 2277200 CAD data International.dxfPhoenix 2277200 CAD data International.pdfPhoenix 2277200 CAD data International.stpPhoenix 2277200 Data Sheet English.pdfPhoenix 2277200 E-Learning English.wmvPhoenix 2277200 Manufacturers declaration English.pdfPhoenix 2277200 Manufacturers declaration International.pdfPhoenix 2277200 Package Slip International.pdfPhoenix 2277200 Tender Text English.zip
