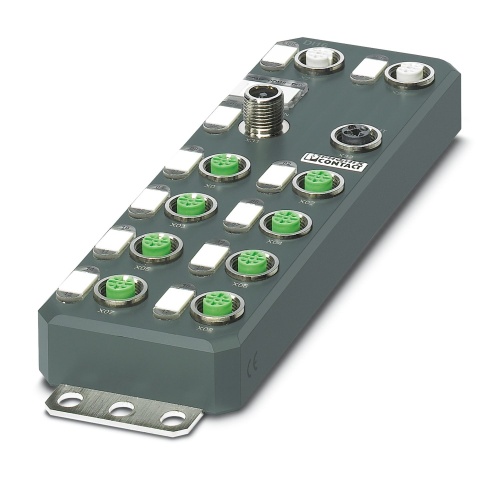

Phoenix Contact 2701510 Digital module AXL E PN DI16 M12 6P
Normally In Stock
Code: 71196
AXL E PN DI16 M12 6P Phoenix 2701510 I/O component Axioline Digital Input PROFINET 100 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, double occupancy PLC & IO
Condition: New
Usually ships Same Day or Next Day$521.20
Sale Price
$434.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2701510 The Axioline E is a digital input device that utilizes PROFINET connectivity and features an M12 connector with 16 digital inputs capable of operating within a 24V DC power supply. The device has a 4-conductor connection technology and is housed in a plastic casing, providing protection against dust and water according to the IP65/IP67 rating.
Specifications
PLC & IO Connection Method
M12 Fast Connection Technology
PLC & IO Connection Method
M12 Connector (T-Coded)
PLC & IO Connection Method
M12 Connector
PLC & IO Connection Method
Double Occupancy
PLC & IO Number of Digital Inputs
16
PLC & IO Network Interface
PROFINET
PLC & IO Transmission Speed
100 Mbps
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Diagnostic and status indicators
Transmission speed of 100 Mbps
Connection of digital sensors using M12connectors (A-coded)
Connection to PROFINET network using M12 connectors (D-coded)
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
Downloads
Phoenix 2701510 Application Note English-2.pdfPhoenix 2701510 Application Note English-3.pdfPhoenix 2701510 Application Note English-4.pdfPhoenix 2701510 Application Note English-5.pdfPhoenix 2701510 Application Note English-6.pdfPhoenix 2701510 Application Note English-7.pdfPhoenix 2701510 Application Note English.pdfPhoenix 2701510 CAD data International.dxfPhoenix 2701510 CAD data International.pdfPhoenix 2701510 CAD data International.stpPhoenix 2701510 Data Sheet English.pdfPhoenix 2701510 Device Description English.zipPhoenix 2701510 Manual English.pdfPhoenix 2701510 Manufacturers declaration English.pdfPhoenix 2701510 Manufacturers declaration International.pdfPhoenix 2701510 Package Slip International-2.pdfPhoenix 2701510 Package Slip International.pdfPhoenix 2701510 Software English.zipPhoenix 2701510 Tender Text English.zipPhoenix 2701510 Various English.pdf
