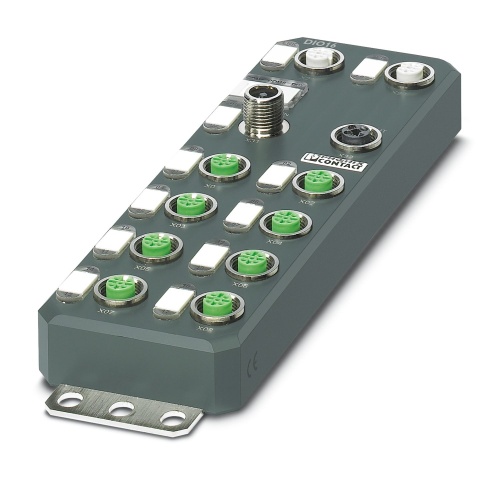

Phoenix Contact 2701511 Digital module AXL E PN DIO16 M12 6P
Normally In Stock
Code: 71140
AXL E PN DIO16 M12 6P Phoenix 2701511 I/O component Axioline Digital I/O,Digital Input,Digital Output PROFINET 100 Mbps M12 fast connection technology,M12 connector (T-coded),M12 connector, double occupancy PLC & IO
Condition: New
Usually ships Same Day or Next Day$681.62
Sale Price
$568.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

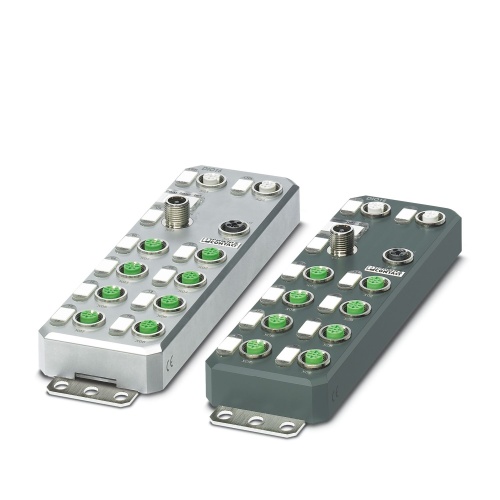

Phoenix Contact 2701511 Axioline E is a digital I/O device that features PROFINET connectivity and a M12 connector. It has 16 digital inputs and 16 digital outputs, both of which operate at 24V DC and utilize specific connection technologies for each type of signal. The device itself has a plastic housing with a degree of protection rating of IP65/IP67.
Specifications
PLC & IO Connection Method
M12 Fast Connection Technology
PLC & IO Connection Method
M12 Connector (T-Coded)
PLC & IO Connection Method
M12 Connector
PLC & IO Connection Method
Double Occupancy
PLC & IO Number of Digital Inputs
16
PLC & IO Network Interface
PROFINET
PLC & IO Transmission Speed
100 Mbps
PLC & IO Degree of Protection
IP65-IP67
PLC & IO Type
Axioline
PLC & IO Number of Digital Outputs
16
Manufacturer
Phoenix Contact
Component
I/O Component
Features
Diagnostic and status indicators
Transmission speed of 100 Mbps

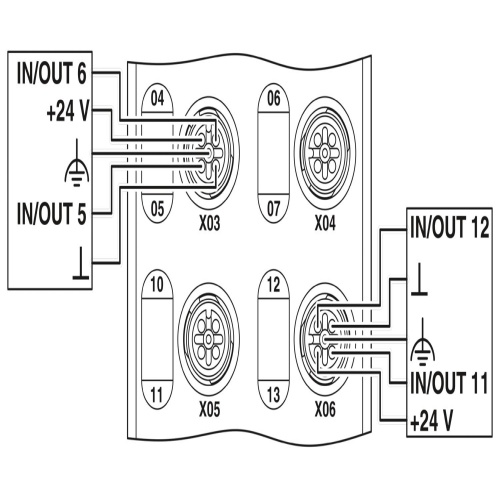

Connection of digital sensors and actuators using M12connectors (A-coded)
Connection to PROFINET network using M12 connectors (D-coded)
Short-circuit and overload protection of the sensor supply
IP65/IP67 degree of protection
