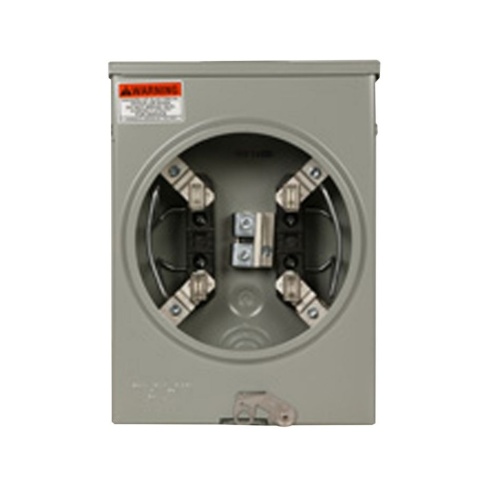

Eaton 1004162ACH - Meter Socket, 125 Amp, Single Phase, 600 VAC, 4 Jaws, 1 Socket
Normally In Stock
Code: 710542
Eaton 1004162ACH - meter socket, Resi type cover, 125A, Over, 3-5/16 inch hub open, horn bypass, #8-2/0 AWG, 4-jaw, 1-ph, #8-2/0 AWG, Gnd conn (#14-#2 Cu), Triplex, 3-wire, Ringless, 600 Vac
Condition: New
Usually ships Same Day or Next Day$237.46
Sale Price
$197.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton 1004162ACH - Meter Socket, 125 Amp, Single Phase, 600 VAC, 4 Jaws, 1 Socket, Overhead, Ringless, #8-2/0 AWG
Specifications
Manufacturer
Eaton
Component
Meter Socket
Phase
Single Phase
Number of Jaws
4
Number of Meter Sockets
1
Amperage
125 Amp
Maximum Voltage
600 VAC
Utility Approvals
PA : Pennsylvania Power & Light (PPL)
Features
Single-socket surface- or flush-mount outdoor enclosures mean simple installation that saves time and money.
Two styles are available so that either BR or CH type branch breakers can be used.
One-piece, die-run enclosure eliminates tampering and extends product life.
Ground bars are available for field installation so installers can configure on the fly, saving time and money on installation.
Adding meter sockets to the already existing (load center, surge, breakers, generators and AC disconnect) product lines makes Eaton a one-stop shop for residential and light commercial needs.
