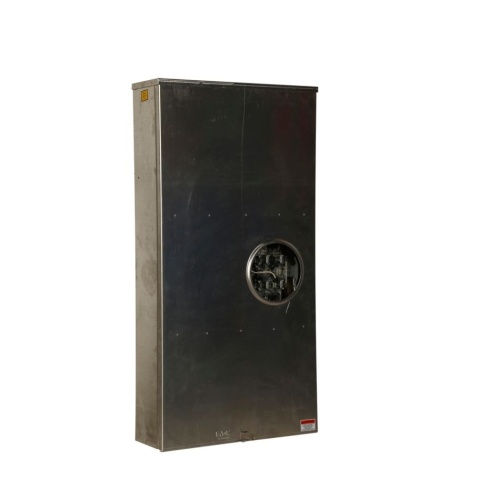

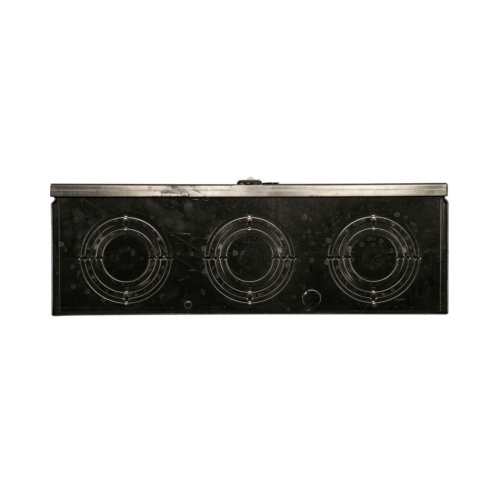

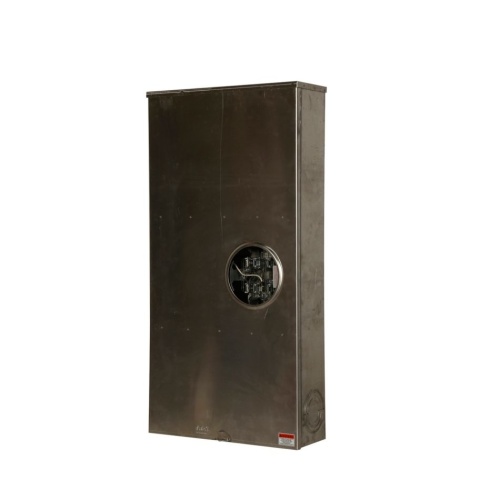

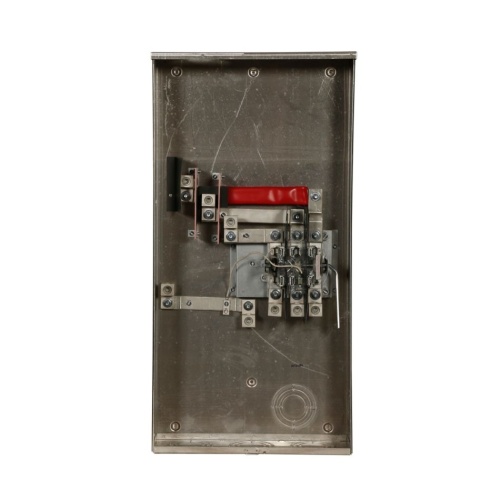

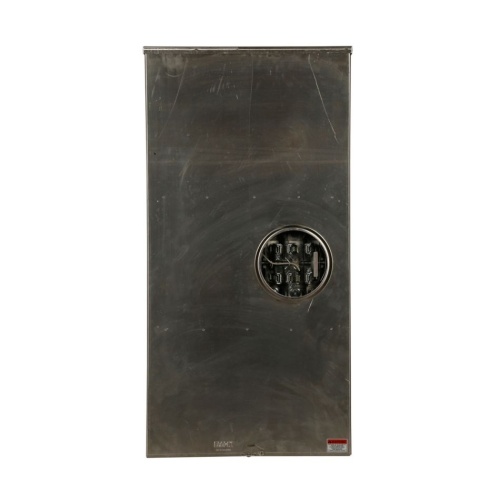

Eaton UFTTH7330TCH - Meter Socket, 320 Amp, Three Phase, 600 VAC, 7 Jaws, 1 Socket
Normally In Stock
Code: 710051
Eaton UFTTH7330TCH - meter socket, 1-pos commercial or resi service, 320A, Over/under, 7-jaw, 3-ph, 3/8 inch stud, Barrel lock with guard provisions, Lever bypass, Two grounding conns (#14-#2 Cu), Quadplex, Side-wired, 4-wire, Ringless, 600 Vac
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2572.61
Sale Price
$2143.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton UFTTH7330TCH - Meter Socket, 320 Amp, Three Phase, 600 VAC, 7 Jaws, 1 Socket, Top/bottom, Ringless, 3/8 in stud
Specifications
Manufacturer
Eaton
Component
Meter Socket
Phase
Single Phase In
Phase
Single Phase Out
Number of Meter Sockets
1
Number of Jaws
7
Maximum Voltage
600 VAC
Amperage
320 Amp
Utility Approvals
TX : Southwestern Electric Power Company (SWEPCO) (AEP West)
Utility Approvals
AR : Southwestern Electric Power Company (SWEPCO) (AEP West)
Utility Approvals
TX : AEP Texas (AEP West)
Utility Approvals
OK : Public Service Company Of Oklahoma (PSO) (AEP West)
Utility Approvals
LA : Southwestern Electric Power Company (SWEPCO) (AEP West)
Utility Approvals
KY : Kentucky Power (AEP West)
Features
Single-socket surface- or flush-mount outdoor enclosures mean simple installation that saves time and money.
Two styles are available so that either BR or CH type branch breakers can be used.
One-piece, die-run enclosure eliminates tampering and extends product life.
Ground bars are available for field installation so installers can configure on the fly, saving time and money on installation.
Integral triplex or quadplex ground extruded in neutral lug. Having just one piece for terminating incoming/outgoing neutral conductors increases the integrity of connections.
Block assembly base exceeds 400 in-lbs of torque, which provides durability under the most extreme installation circumstances.
Adding meter sockets to the already existing (load center, surge, breakers, generators and AC disconnect) product lines makes Eaton a one-stop shop for residential and light commercial needs.
