Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 710042

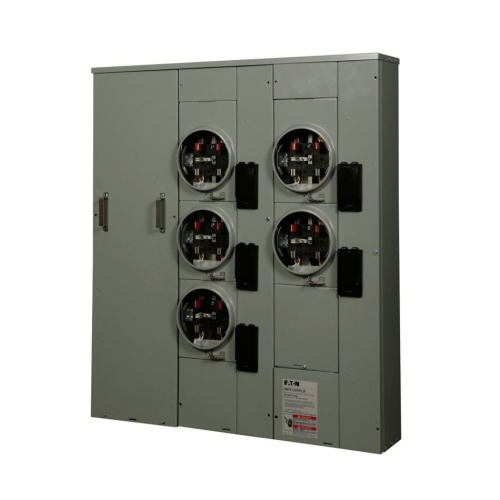

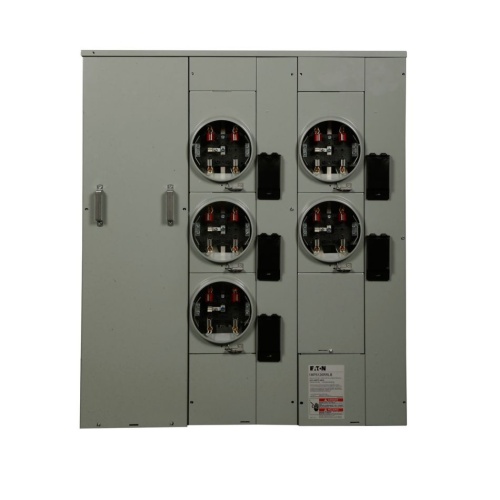

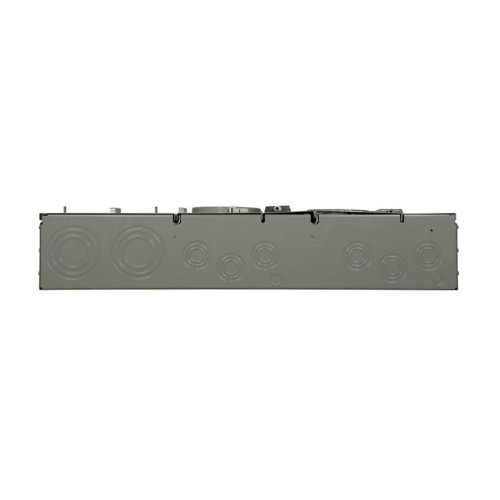

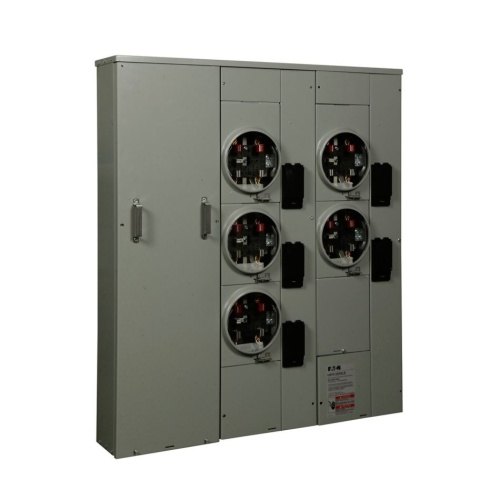

Eaton 1MP5126RRLBCPS - Meter Pack, 125 Amp, Single Phase In, Single Phase Out, 120/240 VAC, 5 Jaws, 5 Sockets
Normally In Stock
Eaton 1MP5126RRLBCPS - meter pack, Socket amperage: 125A, Amperage rating: 125A, Aluminum, Bus rating: 600A, Horn bypass, Indoor/outdoor, Up to 100 KAIC, Five-jaw, 5 Sockets, Single-phase in/single-phase out, Ringless, 120/240 Vac
Condition: New
Usually ships Same Day or Next Day$3741.76
Sale Price
$3118.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton 1MP5126RRLBCPS - Meter Pack, 125 Amp, Single Phase In, Single Phase Out, 120/240 VAC, 5 Jaws, 5 Sockets, Ringless
Specifications
Manufacturer
Eaton
Component
Meter Pack
Phase
Single Phase
Number of Jaws
5
Number of Meter Sockets
5
Maximum Voltage
120/240 VAC
Amperage
125 Amp
Utility Approvals
TX : City Public Service Of San Antonio (CPSB)
Features
1MP units are self-contained (main terminal box included) for installations requiring up to six meter socket positions in a single enclosure, which means simple installation
Approved by major power companies, UL listed, suitable as service equipment, and in compliance with the service and electrical requirements of EUSERC and CECHA
Indoor/outdoor construction means no need to purchase special equipment for specific installations
Underground incoming feed
Clip-tight socket eliminates the need for self-tapping screw connections to vertical bus bars
Standardized factory-installed mounting features allow simple, fast installation
Lockable, raintight main tenant breaker cover secures against unauthorized operation and is high-impact plastic that resists wear, rust and corrosion
