Code: 709997

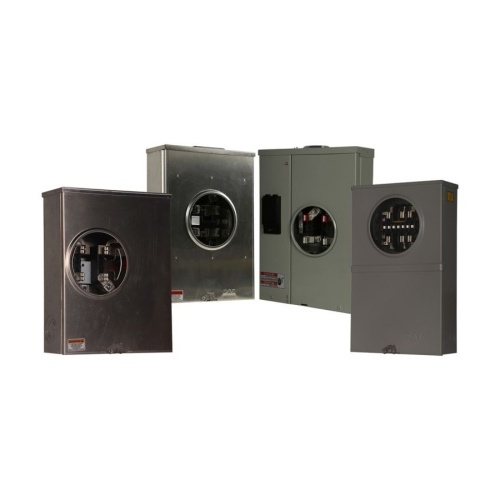

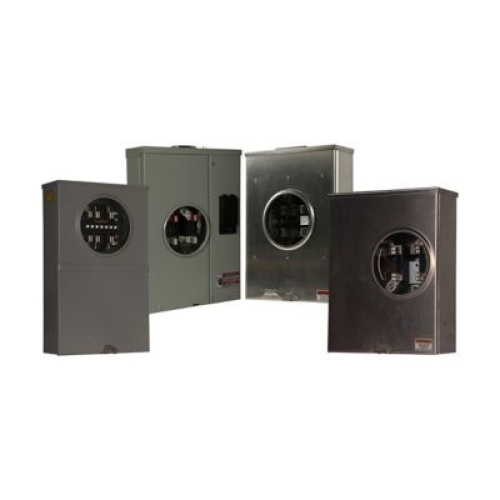

Eaton UT5H42393TTCH - Meter Socket, 200 Amp, Single Phase, 600 VAC, 4 Jaws, 5 Sockets
Normally In Stock
Eaton UT5H42393TTCH - meter socket, Multi position commercial or resi service, 200A, Over/under, Hub open, 1/0-500 kcmil, 4-jaw, 1-ph, #6-350 kcmil, Lever bypass, Gnd conn (#14-#2 Cu), Triplex, Three-wire, Ringless, 600 Vac
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$8810.21
Sale Price
$7341.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton UT5H42393TTCH - Meter Socket, 200 Amp, Single Phase, 600 VAC, 4 Jaws, 5 Sockets, Top/bottom, Ringless, 1/0-500 kcmil
Specifications
Manufacturer
Eaton
Component
Meter Socket
Phase
Single Phase In
Phase
Single Phase Out
Number of Jaws
4
Number of Meter Sockets
5
Amperage
200 Amp
Maximum Voltage
600 VAC
Utility Approvals
IA : Alliant (IP&L And WP&L)
Utility Approvals
WI : Alliant (IP&L And WP&L)
Features
Single-socket surface- or flush-mount outdoor enclosures mean simple installation that saves time and money.
Two styles are available so that either BR or CH type branch breakers can be used.
One-piece, die-run enclosure eliminates tampering and extends product life.
Ground bars are available for field installation so installers can configure on the fly, saving time and money on installation.
Integral triplex or quadplex ground extruded in neutral lug. Having just one piece for terminating incoming/outgoing neutral conductors increases the integrity of connections.
Block assembly base exceeds 400 in-lbs of torque, which provides durability under the most extreme installation circumstances.
Adding meter sockets to the already existing (load center, surge, breakers, generators and AC disconnect) product lines makes Eaton a one-stop shop for residential and light commercial needs.
