Code: 709595
Eaton 35MM240R1240C49 - 35MM commercial meter stack, 3-Phase Module, 400 Amp
Normally In Stock
Eaton 35MM240R1240C49 - 35MM commercial meter stack, 3-Phase Module, 400 Amp
Condition: New
Usually ships Same Day or Next Day$13965.97
Sale Price
$11638.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

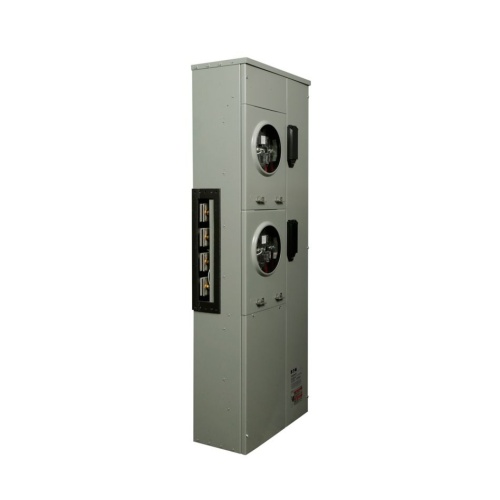

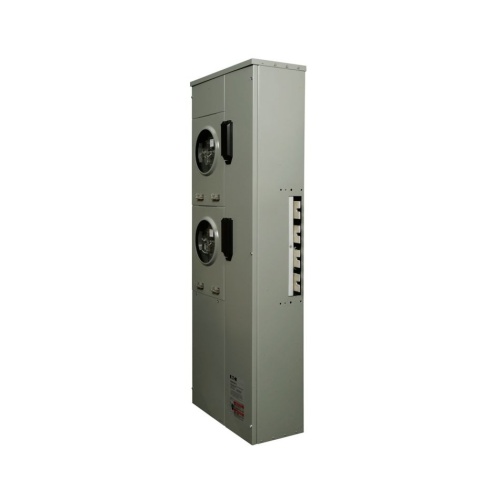

Eaton 35MM240R1240C49 - 35MM commercial meter stack, 3-Phase Module, 400A, K-frame included secondary breaker, (1) 400A and (1) 200A breaker installed, 400A socket, 208Y/120V, Ringless, Cu 1200A bus, Lever bypass, Five-jaws, 2 sockets
Specifications
Manufacturer
Eaton
Component
Meter Stack
Number of Jaws
5
Number of Meter Sockets
2
Amperage
400 Amp
Features
Combination indoor/outdoor enclosures with removable top cap, bottom plate and back plate for field installed knockouts (all blank plates) allow for flexible and easy installation.
Two designs can be interconnected with all other commercial metering as well as with residential devices which makes installation faster and more flexible.
Meter socket and tenant main breaker/wireway sections are separated by a solid metal barrier to guard unmetered bus against power theft.
Able to be mounted with 1MM/3MM modules and thus will bolt together in many different arrangements, giving greater flexibility.
UL listed and suitable for use as service entrance equipment, which means no need to purchase more equipment or use add-ons.
Separate covers allow easy access to tenant breaker and wireway section as well as permit work on breakers or in wireway without disturbing meters or meter covers.
