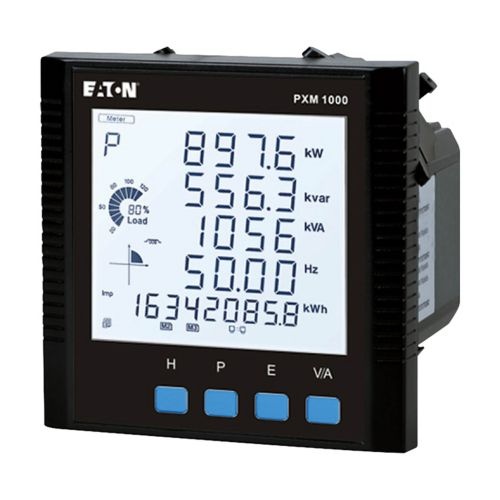

Eaton PXM1200MB43 - Power Xpert meter 1200
Normally In Stock
Code: 709251
Eaton PXM1200MB43 - Power Xpert meter 1200
Condition: New
Usually ships Same Day or Next Day$2348.09
Sale Price
$1956.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton PXM1200MB43 - PXM 1000 multifunction power and energy meter, LCD display, 45-65Hz, Nominal current input 333mV, Power supply 20-60Vdc, Built-in RS485 port with Modbus-RTU and DNP3.0 protocol, 8MB onboard memory, TOU 4 Tariffs/12 Seasons/14 Schedules
Specifications
Component
Power Meter
Manufacturer
Eaton
Features
ANSI C12.20 and IEC 62053-22 utiliy billing accuracy will help meet stringent customer specifications.
Available in 5A and 333mV CT type inputs, allow for ease of use in multiple applications
Rogowski coils allow for ease of use in retrofit applications
Wide range of communication protocols - Modbus-TCP/IP, BACnet-IP, EtherNet/IP, IPv6, HTTP/HTTPs Post, FTP, sFTP, SNMP V3, SMTP and NTP time synchronization.
Optional Analog and Digital I/O modules for control, status monitoring or integrating other data such as temperature, pressure etc.
Optional data logging, time-of-use and power quality monitoring with field-swappable communication modules.
Optional Wifi offer users enhanced connectivity and ability to access the web browser to view and configure your meter from anywhere
