Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

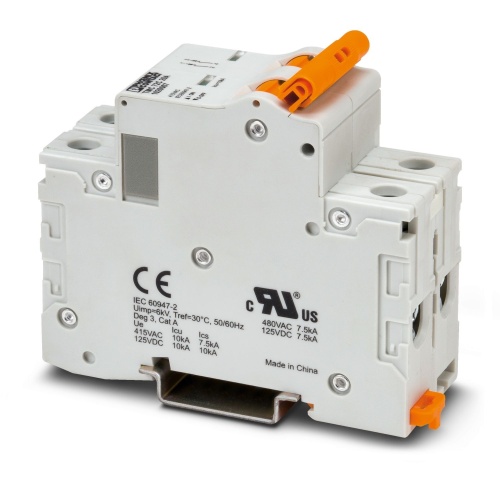

Phoenix Contact 1020007 Miniature Circuit Breaker TMC 72C 20A
Normally In Stock
Code: 70719
Phoenix 1020007 Thermomagnetic device circuit breakers 20 Amp 277 VAC DIN rail: 35 mm Protective Devices
Condition: New
Usually ships Same Day or Next Day$40.16
Sale Price
$33.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1020007 The Thermal-magnetic Miniature Circuit Breaker is used for supplementary protection against overload and short-circuit currents up to 7.5 kA, featuring a tripping characteristic of C and suitable for mounting in an NS 35 type enclosure, with a rated current of 20 A.
Specifications
Breaker Mount Type
Din Rail
Breaker Amperage Rating
20 Amp
Breaker Number of Poles
Two Pole
Breaker Voltage Rating
277 VAC
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Can be used worldwide due to international approvals
Suitable for various grid types, as it is available in 1-, 2-, 3-pos. versions
Ideally coordinated protection due to various tripping characteristics and a wide selection of nominal currents
Reduced inventory because of suitability for AC and DC applications
Optional accessories enable remote control and monitoring
Downloads
Phoenix 1020007 CAD data International.dwgPhoenix 1020007 CAD data International.stpPhoenix 1020007 CAD data International.wrlPhoenix 1020007 Data Sheet English.pdfPhoenix 1020007 Flyer English.pdfPhoenix 1020007 Manufacturers declaration International.pdfPhoenix 1020007 Tender Text English.zipPhoenix 1020007 Various English.pdf
