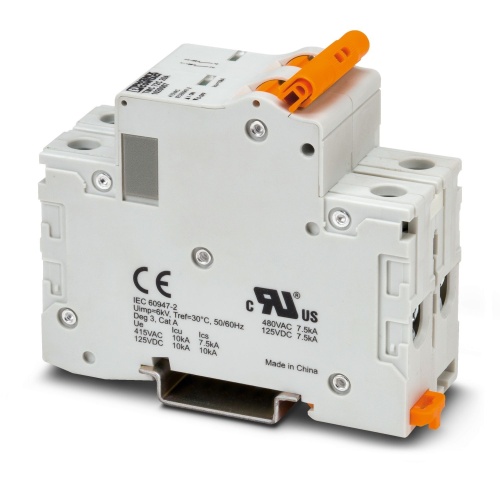

Phoenix Contact 1020061 Miniature Circuit Breaker TMC 72D 02A
Normally In Stock
Code: 70715
Phoenix 1020061 Thermomagnetic device circuit breakers 2 Amp 277 VAC DIN rail: 35 mm Protective Devices
Condition: New
Usually ships Same Day or Next Day$40.16
Sale Price
$33.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1020061 A Thermal-magnetic Miniature Circuit Breaker is designed as supplementary protection and can be used to safeguard against overloads up to short-circuit currents of 7.5 kA, featuring a D-tripping characteristic and suitable for mounting type NS 35, with a rated current of 2 A.
Specifications
Breaker Mount Type
Din Rail
Breaker Amperage Rating
2 Amp
Breaker Number of Poles
Two Pole
Breaker Voltage Rating
277 VAC
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Can be used worldwide due to international approvals
Suitable for various grid types, as it is available in 1-, 2-, 3-pos. versions
Ideally coordinated protection due to various tripping characteristics and a wide selection of nominal currents
Reduced inventory because of suitability for AC and DC applications
Optional accessories enable remote control and monitoring
Downloads
Phoenix 1020061 CAD data International.dwgPhoenix 1020061 CAD data International.stpPhoenix 1020061 CAD data International.wrlPhoenix 1020061 Data Sheet English.pdfPhoenix 1020061 Flyer English.pdfPhoenix 1020061 Manufacturers declaration International.pdfPhoenix 1020061 Tender Text English.zipPhoenix 1020061 Various English.pdf
