Code: 696279

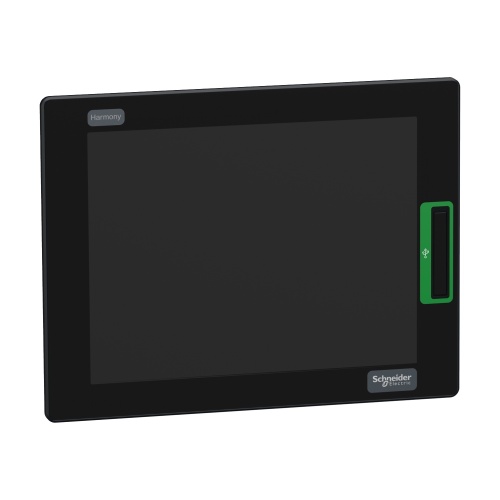

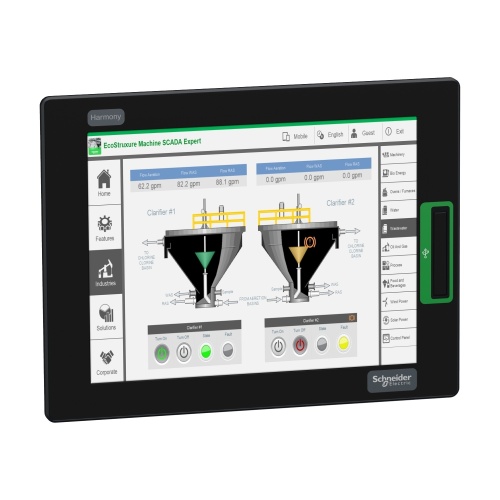

Schneider Electric HMIDM6600TM Touchscreen Panel - 12.1"
Normally In Stock
Schneider Electric HMIDM6600TM Touchscreen Panel - 12.1"
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$3478.45
Sale Price
$2898.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric HMIDM6600TM - 12.1 Display module, Harmony P6, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B
Specifications
Manufacturer
Schneider Electric
Component
Touchscreen Panel
HMI & PC Screen Display Size
12.1"
Features
This industrial display belongs to the Schneider Electric's Harmony HMI P6 range
This 2 point multi-touch resistive HMIDM6 display has a plastic overlay surface design with backlight service life of 50,000 hours
This is a 12.1 inch wide screen of 16 million colors and 1024×768 pixel resolution (XGA)
There is a 1x USB 2.0 (Type A) port on the front panel with an USB cover
The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics
The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 13 degree of protection
The power consumption when this DM6 display is paired with P6 Advanced Modular Box is 156VAMax
(AC model) and 136WMax
(DC model), with P6 Standard Modular Box is 77VAMax
(AC model) and 68WMax
(DC model)
Its dimensions are 315mm (width) x 241mm (height) x 32mm (depth) and weighs 2.40Kg
Harmony P6 industiral PCs caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure
It complies with CE, RCM, UL 61010-2-201 and CSA C22.2 No
61010-2-201 for both AC and DC models
This display when combined with any of the Harmony P6 Boxes makes a Panel PC
It can be mounted on front enclosure or VESA 100 × 100 mount on the rear of Box PC
The stylish Harmony P6 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design
The Harmony P6 online Configurator with enlarged line-up offers many possibilities and when linked with EcoStruxure Plant Builder eases the design of complete automation architectures and solutions.
