Code: 696278

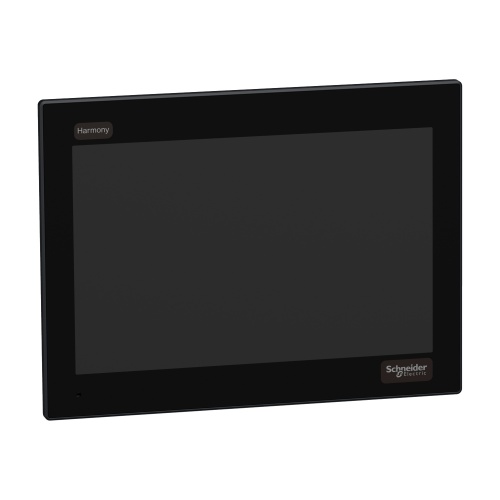

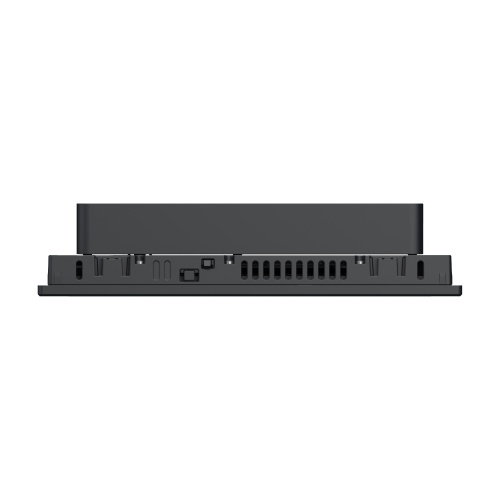

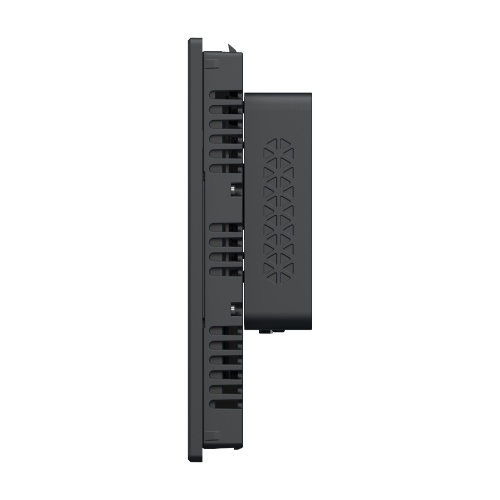

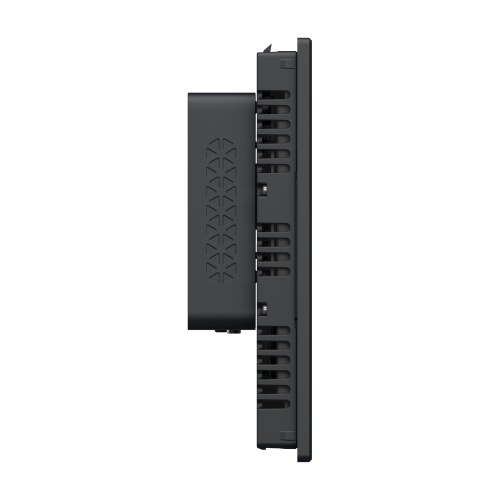

Schneider Electric HMIFP6600WCD Touchscreen Panel - 12.1", 1280 X 800
Normally In Stock
Schneider Electric HMIFP6600WCD Touchscreen Panel - 12.1", 1280 X 800
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2588.93
Sale Price
$2157.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric HMIFP6600WCD - 12w Industrial FPM, Harmony FP6, WXGA, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter, DVI, USB Type B, 24V DC
Specifications
HMI & PC Screen Display Resolution
1280 X 800
Manufacturer
Schneider Electric
Component
Touchscreen Panel
HMI & PC Screen Display Size
12.1"
Features
This industrial flat panel monitor belongs to the Schneider Electric's Harmony HMI FP6 range
This 2 point multi-touch projected capacitive HMIFP6 display has a glass-top surface design with backlight service life of 50,000 hours
HMIFP6600WCD is a 12.1 inch wide screen of 16 million colors and 1,280 × 800 pixel resolution (WXGA)
Three touch mode configurations are available namely Standard mode, Glove mode, and Water detection mode
The modularity of the FP6 display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics
The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 12 and Type 13 degree of protection
The power consumption when this FP6 display is paired with Modular Boxes is 15.9Wmax
Its dimensions are 308.5mm (width) x 230.5mm (height) x 67.5mm (depth) and weighs 3.90Kg
Harmony FP6 industrial Flat Panel Monitor caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure
It complies with CE, RCM, UL 61010-2-201, UL 121201, and CSA C22.2 No
61010-2-201, CSA C22.2 No
213, IECEx/ATEX for use in Zone 2 gas/Zone 22 dust
This display when combined with any of the Harmony P6, Harmony iPCs, or third-party Boxes makes a Panel PC

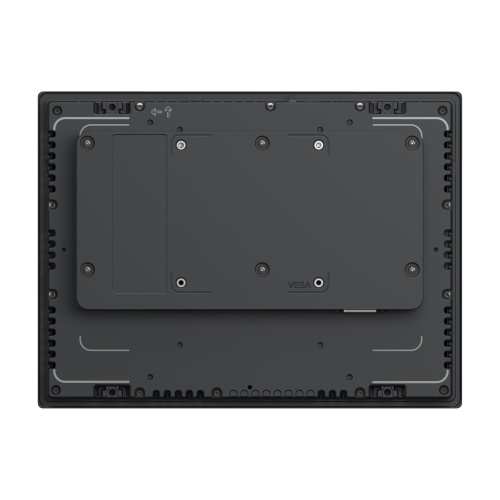

It can be mounted on front enclosure or VESA 100 × 100 mount on the rear of Box PC
The stylish wide Harmony FP6 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design.
