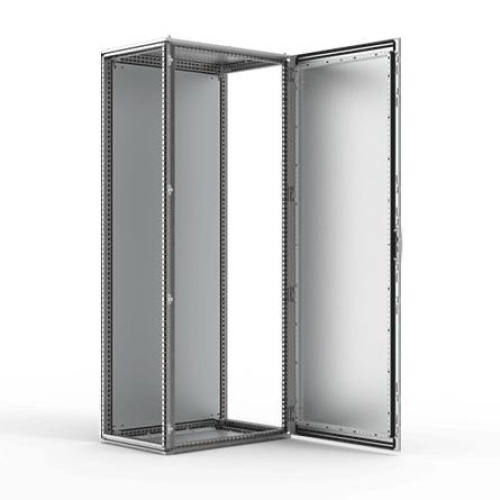

nVent Hoffman MCSS20086HP IEC Mild Steel MCS Floor Standing Enclosure
Code: 69524
nVent Hoffman MCSS20086HP 79"x32"x24" Type 4X,Type 12,Type 13 Outdoor-Indoor Free Standing GLOBAL IEC Products (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$10963.67
Sale Price
$9136.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman MCSS20086HP IEC Mild Steel MCS Floor Standing EnclosureThe stainless steel single door modular floor standing enclosure range, MCSS-HP, with a IP 66 protection degree offers a higher protection level for equipment and components which will help extend their lifetime and reduce maintenance costs when the enclosure is installed for rough environments with severe conditions. These new enclosures are rated as IP66 even if they are bayed between them using the standard baying brackets.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Depth
24"
Enclosure Lock Type
Keylocking
Enclosure Mount Type
Free-Standing
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
32"
Enclosure Height
79"
Enclosure Door Type
Solid
Enclosure Latch Type
Screw
Enclosure Composition
Steel
Component
IEC Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Features
Delivery: Frame with fitted door, rear panel, roof panel, bottom plate, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
Mounting requirements: For stand-alone installation, add side panels. For combined installation, HPPG01 and baying brackets, CCI and CCM are required.
Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
Side panels: Supplied as an accessory.
Roof panel: Removable.
Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
Protection: Complies with IP 66, TYPE 4X, 12, IK 10.
Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Mounting plate is supplied, attached on the outside of the enclosure packaging.
Material: AISI 304L pre-grained stainless steel / AISI 316L (on request). Frame: 1.5 mm. Door: 2 mm. Rear, roof and side panels: 1.5 mm. Bottom plates: 1.5 mm stainless steel. Mounting plate: 3 mm galvanized steel.
Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
Finish: 400s pre-grained stainless steel (0.5 microns average).
Door: Mounted with four hinges, allowing left or right hand opening. Including door frame with 25 mm hole pattern.
