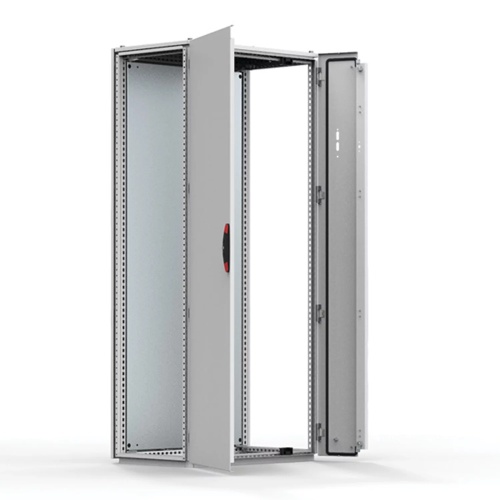

nVent Hoffman MCF20085R5 IEC Mild Steel MCS Floor Standing Enclosure
Code: 69516
nVent Hoffman MCF20085R5 79"x32"x20" Type 12,Type 13 Indoor Free Standing GLOBAL IEC Products (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$3429.22
Sale Price
$2857.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman MCF20085R5 IEC Mild Steel MCS Floor Standing EnclosureThe mild steel flange mount disconnect floor standing enclosure range, MCF, is available off the shelf in various sizes. It is equipped with a predefined cut-out, which reduces machining time, on the right hand door, that can be matched with most of the common switches in the market. The enclosure configurations that may be created comply with door interlocking and main switch regulations.
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Depth
20"
Enclosure Lock Type
Keylocking
Enclosure Mount Type
Free-Standing
Enclosure Width
32"
Enclosure Height
79"
Line
Global IEC
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Latch Type
Screw
Enclosure Composition
Steel
Component
IEC Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Side panels: Supplied as an accessory.
Door: Mounted with four hinges. Including door frame with 25 mm hole pattern. Door can not be reversed. Flange door: Surface mounted with hinges, locked from the inside, including universal cut-out.
Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
Roof panel: Removable.
Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
Material: Frame: 1.5 mm painted steel. Doors: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
Lock: Lock, left door: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories. Lock, right door: Top and bottom lock with double-bit for easy opening of the door. Double-bit 3 mm insert and 90° movement. Other inserts are available as an accessory.
Finish: RAL 7035 structured powder coating.
Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
Mounting plate: Double folded and adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
Bottom plates: Consists of three pieces
Protection: Complies with IP 55 | TYPE 12 | IK 10.
Mounting requirements: Standard delivery ready for combined installation. Sides of the group of combined enclosures must be closed with side panels SPM. The interlocking kit, FMD, is included in standard delivery and compatible with the most popular electrical switched. To complete the interlocking system for bayed configurations, add FMA, FMB and FMS.
Delivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
