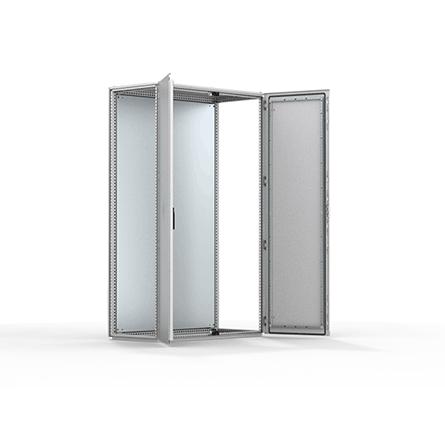

nVent Hoffman MCD20126R5 IEC Mild Steel MCS Floor Standing Enclosure
Normally In Stock
Code: 69509
nVent Hoffman MCD20126R5 79"x48"x24" Type 12,Type 13 Indoor Free Standing GLOBAL IEC Products (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$4116.02
Sale Price
$3430.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman MCD20126R5 IEC Mild Steel MCS Floor Standing EnclosureThe mild steel double door modular floor standing enclosure range, MCD, is ideal for installation in confined spaces where a single door, when opened, would take up too much space in front of the enclosure. The doors' loading capacity also increases as it is divided over two doors. With a IP 55 protection degree, components inside the enclosure are well protected and makes it well suited for many different applications.
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Depth
24"
Enclosure Lock Type
Keylocking
Enclosure Mount Type
Free-Standing
Enclosure Number of Doors
2 Door
Enclosure Width
48"
Enclosure Height
79"
Line
Global IEC
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Latch Type
Screw
Enclosure Composition
Steel
Component
IEC Enclosure
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Side panels: Supplied as an accessory.
Doors: Mounted with four hinges. Including door frame with 25 mm hole pattern. Doors cannot be reversed. Separate doors to be ordered for left hand door locking.
Rear panel: Fitted by M6 torx screws. Standard facilities for rear doors mounting. Split rear panels in 1600 mm wide enclosures. RD version comes with rear door instead of rear panel.
Roof panel: Removable.
Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
Material: Frame: 1.5 mm painted steel. Doors: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
Finish: RAL 7035 structured powder coating.
Earthing: All panels are earthed through their fittings and equipped with a separate earthing stud.
Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
Bottom plates: Consists of three or four (D>600) pieces.
Protection: Complies with IP55 | TYPE 12 | IK 10.
Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
Delivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame (not included for PER5 version). For enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. Packing material is recyclable.
