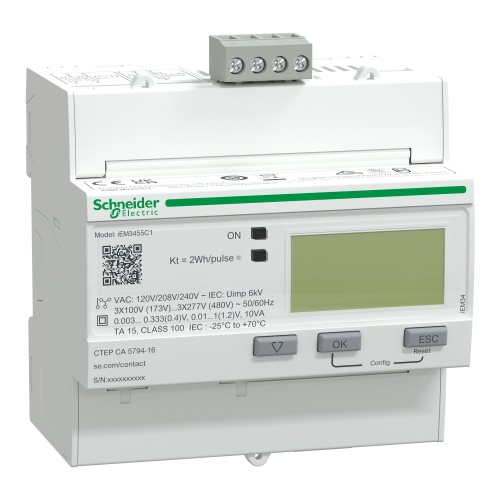

Schneider Electric A9MEM3455C1 - Acti 9 iEM3000 Series Energy Meter
Normally In Stock
Code: 691810
Schneider Electric A9MEM3455C1 - Acti 9 iEM3000 Series Energy Meter
Condition: New
Usually ships Same Day or Next Day$802.03
Sale Price
$668.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric A9MEM3455C1 - iEM3455 energy meter - Modbus - 1 DI - 1 DO - multi-tariff - LVCT - CTEP 100A
Specifications
Manufacturer
Schneider Electric
Component
Energy Meter
Features
The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display
Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators
This meter can be used in sub-billing applications and supports 4 tariff schedules
The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-21, and per ANSI C12.20
The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current
With four quadrant Energy measurement
Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC
The rated current goes through a 0.333V or 1V transducer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations
Communication protocol is Modbus with screw terminal support
There is one programmable digital input and one programmable digital output that can be used as a pulsed output
Certifications include EAC, CE and UL
Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.42 in (87 mm)
Compatible with power management software to take advantage of the IoT digital power installation
This model is CTEP approved for Sub-Billing in the state of California
The range is locked at the factory for 100A.
