Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

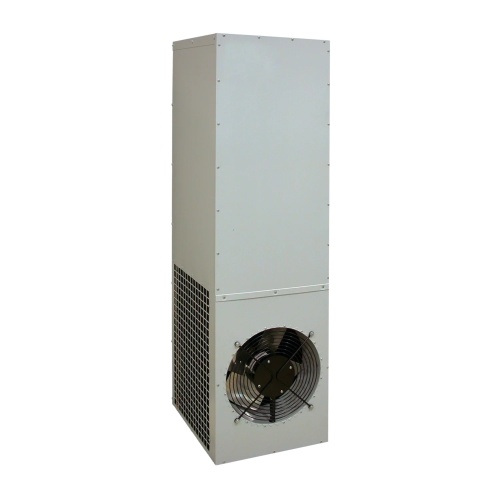

nVent Hoffman T622226G102 Air Conditioner Outdoor-Indoor 230 VAC Three Phase, 23500 BTU
Normally In Stock
Code: 69159
nVent Hoffman T622226G102 Outdoor-Indoor 230 VAC Three Phase, 23500 BTU Outdoor Model/SST/Corrosion/4X Air Conditioner (Compressor) 5060 Watt. 22 Amp
Condition: New
Usually ships Same Day or Next Day$18996.35
Sale Price
$15830.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman T-Series Large Capacity Outdoor Enclosure Air Conditioner. Stock models equipped with head pressure control for lowambient operation, compressor heater, coated condenser coil, malfunction switch, thermostat and heater package. R134A earth-friendly refrigerant. Models for 115, 230 and 460 VAC power input. UL Listed to save customers time and money with agency approvals (some models UL recognized). Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C. Exterior and fully recessed mounting options on many models. Compact footprint to minimize real estate and maximize capacity. Reliable mechanical thermostat on enclosure side of the unit. Dual condenser-side air movers for performance redundancy.
Specifications
AC Mounting
Side Mount
AC Maximum Ambient Temp
131 F
AC Voltage
230 VAC
AC Max BTU Rating
23500 BTU
AC Watts
6886
AC Type
Air Conditioner (Compressor)
AC Composition
Steel
AC Environment
Outdoor-Indoor
AC Minimum Ambient Temp
-40 F
Component
Air Conditioner
Line
T-Series
AC Height
62"
AC Depth
18"
AC Width
20"
AC NEMA Rating
NEMA Type 12
AC NEMA Rating
NEMA Type 3R
AC NEMA Rating
NEMA Type 4
AC Amperage
22 Amp
Manufacturer
Hoffman
Features
Operating temperature range from -40 F/-40 C to 131 F/55 C
R-407C refrigerant
Models for 230 and 460 VAC power input
Reliable mechanical thermostat on enclosure side of the unit
Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
Compact footprint to minimize real estate and maximize capacity
Dual condenser-side air movers for performance redundancy
Every unit functionally tested before shipping
Easy-mount flanges for simple installation
Exterior and fully recessed mounting options on many models
Painted galvanized sheet-metal cover for rugged factory and outdoor environments
Standard Outdoor Air Conditioner models include telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
Mounting hardware, gaskets and user manual furnished with the unit
