Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Schneider Electric XB5FA31C0 - Harmony XB5, Round, Plastic, Green flush, unmarked
Normally In Stock
Code: 691222
Schneider Electric XB5FA31C0 - Harmony XB5, Round, Plastic, Green flush, unmarked
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$28.97
Sale Price
$24.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

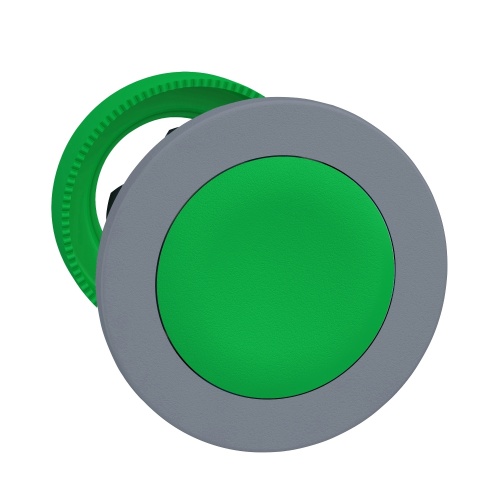

Schneider Electric XB5FA31C0 - Push button, Harmony XB5, gray bezel, green flush, 30mm, spring return, 1NO, unmarked
Specifications
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) Shape
Round
(Switching-Indication) Composition
Plastic
(Switching-Indication) Color
Green
(Switching-Indication) NEMA Rating
NEMA 4X
Manufacturer
Schneider Electric
Component
Push Button
(Switching-Indication) Size
30.5 mm
Features
This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product

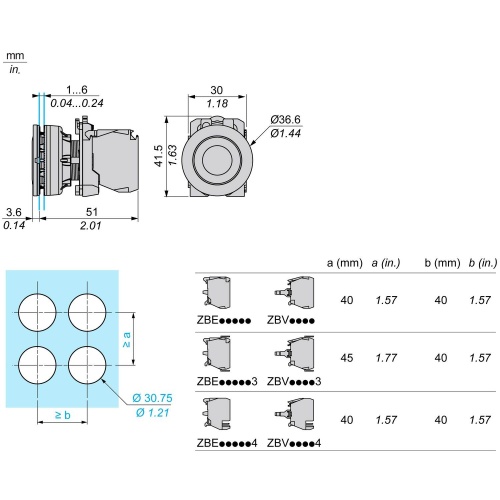

The mounting diameter is 30.5 mm
It has no marking
Customized marking option through web customization tool in Schneider Electric website is available
The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics
The contact type is 1NO slow break and the connection terminal is screw clamp
The operator mechanism is spring return, and the push mechanism is flush push
The shape of the head is round and green
The bezel is plastic color plated gray and the fixing collar is plastic
The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm
The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications
With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved
It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals
Accessories to be ordered separately are available to facilitate the installation
The packaging includes 1 unit of this pushbutton
It can be easily installed to a panel cut out with the help of a cross head screwdriver
Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
