Code: 6908

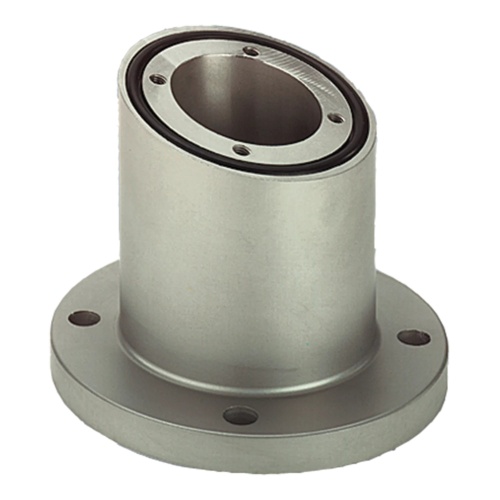

nVent Hoffman CCSS48ACBB CS480 HMI Base Bracket Angle Coupling 15 Degree
nVent Hoffman CCSS48ACBB CS480 HMI Base Bracket Angle Coupling 15 Degree
Condition: New
Usually ships Same Day or Next Day$1287.79
Sale Price
$1073.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman CCSS48ACBB CS480 HMI Base Bracket Angle Coupling 15 Degree
Specifications
Component
Bracket
Pendant Arm Component Composition
Stainless Steel
Pendant Arm Component Mounting
Enclosure To Tube
Line
CS480
Pendant Arm Component Angle
15 Degrees
Manufacturer
Hoffman
Features
Surface mounting fasteners are not provided
Assembled CS480 HMI Arm System has a max weight load of 89.6 lb. (40.7 kg)
Gasket and mounting hardware are included
Enclosure is mounted at a 15-degree incline angle
Downloads
Hoffman CCSS48ACBB 2D DXF CAD.zipHoffman CCSS48ACBB 3D STEP CAD.zipHoffman CCSS48ACBB CAD Drawing.zipHoffman CCSS48ACBB Declaration of Compliance.pdfHoffman CCSS48ACBB Dimension Drawing.gifHoffman CCSS48ACBB EU Certification.pdfHoffman CCSS48ACBB Instruction Manual.pdfHoffman CCSS48ACBB Spec Sheet.pdfHoffman CCSS48ACBB User Manual.pdf
