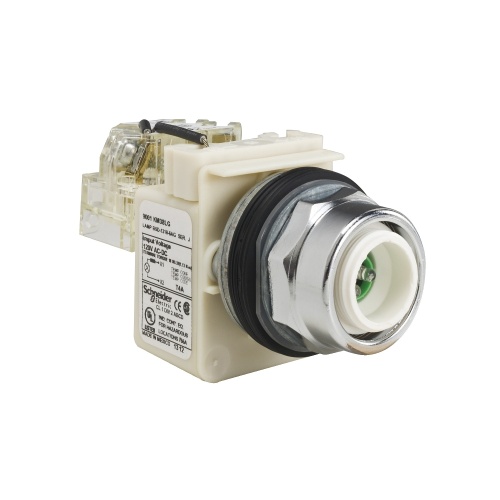

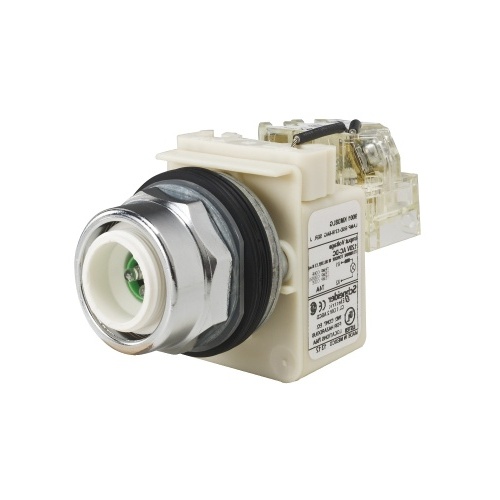

Schneider Electric 9001KT38LG - Harmony 9001K, Metal
Normally In Stock
Code: 690587
Schneider Electric 9001KT38LG - Harmony 9001K, Metal
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$249.11
Sale Price
$207.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric 9001KT38LG - 30mm push button, Type K, push to test pilot light, green LED light module, 120VAC/VDC, no lens, NEMA 4, 13
Specifications
(Switching-Indication) Size
30 mm
(Switching-Indication) NEMA Rating
NEMA 1
(Switching-Indication) NEMA Rating
NEMA 12
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 2
(Switching-Indication) NEMA Rating
NEMA 3
(Switching-Indication) NEMA Rating
NEMA 3R
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) NEMA Rating
NEMA 6
(Switching-Indication) Color
Green
(Switching-Indication) Composition
Metal
Sub Component
Head
Manufacturer
Schneider Electric
Component
Accessories
Features
The 9001K push button line has a large variety of operators and accessories for heavy industry applications
These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more
Type K operators have a die cast operator that mounts in a 1.18 inch round hole
This push-to-test pilot light has a die cast ring nut
By pushing on the pilot light lens, you can determine if the pilot light lamp is still working
This push-to-test pilot light has a 120 VAC/VDC green LED light module to provide the illumination
The light module has a green LED lamp
This operator has one 9001KA1 contact block mounted on the back
The contact block has one normally open and one normally closed contact
Contact block has a UL Type A600, UL Type Q600 and a 10A resistive VAC rating
The contacts in this contact block are double break direct acting
Contact block and light module will accept up to two 12AWG to 24 AWG solid or stranded wires
The contact block and light module terminals are protected to meeting VDE 0106 Part 100
This push-to-test pilot light does not have a pilot light lens
A green lens is highly recommended
When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments
This operator is UL Listed and CSA certified.
