Code: 6903

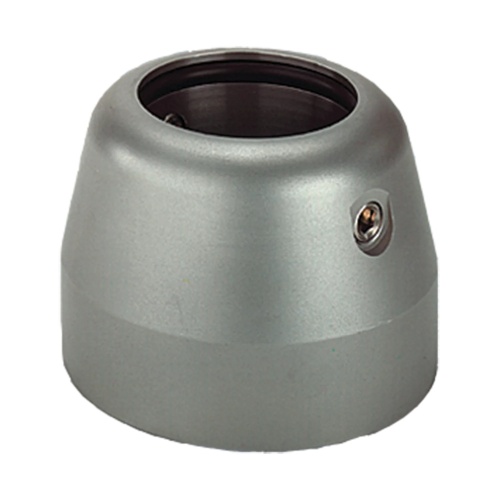

nVent Hoffman CCSS48FC CS480 HMI Stainless Steel Straight Coupling
nVent Hoffman Straight coupling for enclosure. Flange coupling for attaching enclosures. Turns through 340 degrees with rotation limiter. Preset torque. Maintenance-free bearings. Type 304 polished stainless steel finish. Includes gaskets and mounting hardware.
Condition: New
Usually ships Same Day or Next Day$1337.80
Sale Price
$1114.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman Straight coupling for enclosure. Flange coupling for attaching enclosures. Turns through 340 degrees with rotation limiter. Preset torque. Maintenance-free bearings. Type 304 polished stainless steel finish. Includes gaskets and mounting hardware.
Specifications
Pendant Arm Component Composition
Stainless Steel
Pendant Arm Component Mounting
Tube To Tube
Line
CS480
Component
Coupling
Pendant Arm Component Rotation
340 Degrees
Manufacturer
Hoffman
Features
Gasket and mounting hardware are included
Assembled CS480 HMI Arm System has a max weight load of 89.6 lb. (40.7 kg)
Torque preset at factory
Coupling can rotate 340 degrees with rotation stop
Downloads
Hoffman CCSS48FC 2D DXF CAD.zipHoffman CCSS48FC 3D STEP CAD.zipHoffman CCSS48FC CAD Drawing.zipHoffman CCSS48FC Declaration of Compliance.pdfHoffman CCSS48FC Dimension Drawing.gifHoffman CCSS48FC EU Certification.pdfHoffman CCSS48FC Instruction Manual.pdfHoffman CCSS48FC Spec Sheet.pdfHoffman CCSS48FC User Manual.pdf
