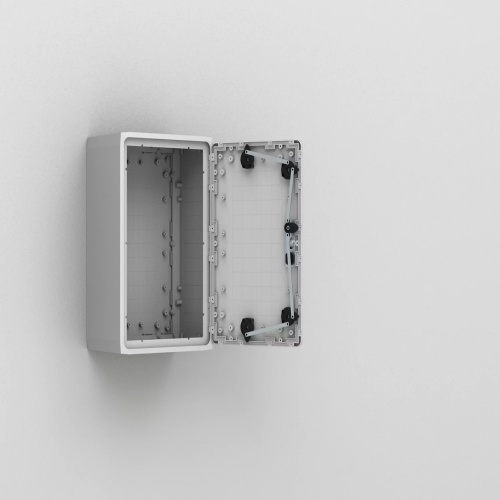

nVent Hoffman UDP12575 Multipurpose Wall Mount Enclosure - 49.2" x 29.5" x 12.6" (HxWxD), Polyester
Normally In Stock
Code: 690132
nVent Hoffman UDP12575 Multipurpose Wall Mount Enclosure - 49.2" x 29.5" x 12.6" (HxWxD), Polyester
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$5330.44
Sale Price
$4442.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman UDP12575 - Polyester Modular Single Door Enclosures, UDP
Specifications
Enclosure Composition
Polyester
Enclosure Width
29.5"
Enclosure Depth
12.6"
Component
Non-Metallic Enclosure
Enclosure Height
49.2"
Manufacturer
Hoffman
Features
Material: Fibre-glass reinforced polyester. UDPT viewing area: polycarbonate.
Body: Modular moulded, with rear fixing. Direct fixing to the wall or by use of wall mounted brackets. To a pole by use of EPF, to the floor by use of the plinth UPP or DIN-base UAF and UMPS. In single plain door enclosures, sealing is ensured by an EPDM gasket glued against the frame.
Lock: Premounted handle, suitable for all types of half cylinder locks (standard depth of 40 mm). Five locking points (three points in 500 mm width enclosures).
Temperature resistance: -25 °C to 70 °C in continuous use (peak temperatures up to 130 °C).
Characteristics: Self extinguishing and halogen free. Double insulated, according to EN61439-1. Rated insulation voltage Ui = 1000 V ac and 1500 V dc.
Protection: Complies with IP 65, TYPE 4, 4X, 12, 13 for single plain door enclosures. IP 54, TYPE 3, 3R, 3S for transparent door enclosures. Impact resistance IK 10. IK 07 for enclosures with transparent door.
Approvals: CE, CSA, GOST. cULus_UL Listed for single door enclosures. For further approvals, please contact nVent HOFFMAN's sales department.
Finish: RAL 7035, precoloured raw material.
Delivery: Enclosure with door, fixing screws for the mounting plate and wall mounting brackets. (Lock cylinder is not included in the delivery).
