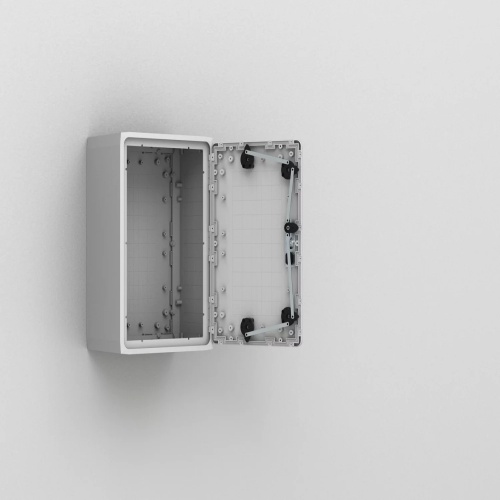

nVent Hoffman UDP75125 Multipurpose Wall Mount Enclosure - 29.5" x 49.2" x 12.6" (HxWxD), Polyester
Normally In Stock
Code: 690115
nVent Hoffman UDP75125 Multipurpose Wall Mount Enclosure - 29.5" x 49.2" x 12.6" (HxWxD), Polyester
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$6142.62
Sale Price
$5118.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman UDP75125 - Polyester Modular Single Door Enclosures, UDP
Specifications
Enclosure Composition
Polyester
Enclosure Height
29.5"
Enclosure Width
19.7"
Enclosure Depth
12.6"
Component
Non-Metallic Enclosure
Manufacturer
Hoffman
Features
Material: Fibre-glass reinforced polyester.
Body: Modular moulded, with rear fixing. Direct fixing to the wall or by use of wall mounted brackets. To a pole by use of EPF, to the floor by use of the plinth UPP or DIN-base UAF and UMPS. In double door enclosures, sealing is ensured by a neoprene gasket.
Door: Flush mounted door, with or without window and 100 ° opening. For larger sizes, a door support is supplied for easier closing.
Temperature resistance: -25 °C to 70 °C in continuous use (peak temperatures up to 130 °C).
Characteristics: Self extinguishing and halogen free. Double insulated, according to EN61439-1. Rated insulation voltage Ui=1000V.
Protection: Complies with IP 65 for double door enclosures. Impact resistance IK 10.
Approvals: CE, GOST. For further approvals, please contact nVent HOFFMAN's sales department.
Finish: RAL 7035, precoloured raw material.
Delivery: Enclosure with door, fixing screws for the mounting plate and wall mounting brackets. (Lock cylinder is not included in the delivery).
