Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

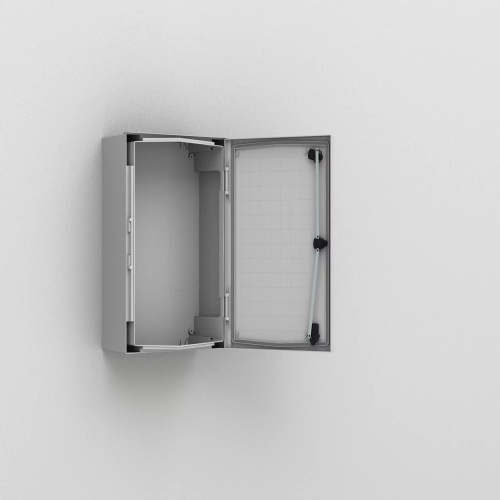

nVent Hoffman UCPT750 Multipurpose Wall Mount Enclosure - 28.9" x 21.1" x 10.6" (HxWxD), Polyester
Normally In Stock
Code: 690113
nVent Hoffman UCPT750 Multipurpose Wall Mount Enclosure - 28.9" x 21.1" x 10.6" (HxWxD), Polyester
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$2421.94
Sale Price
$2018.28
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman UCPT750 - Polyester Compact Wall Mounted Enclosures, UCP/UCPT
Specifications
Enclosure Composition
Polyester
Enclosure Height
29.5"
Enclosure Width
39.4"
Enclosure Depth
12.6"
Component
Non-Metallic Enclosure
Manufacturer
Hoffman
Features
Material: Fibre-glass reinforced polyester. UCPT viewing area: polycarbonate.
Body: Monoblock moulded 3 mm thick. Four holes for direct wall fixing. Without gland plate openings.
Door: Door, with or without window and 180 ° opening. For UCP/UCPT750 and above, a door support is supplied for easier closing. Sealing is by an injected one piece polyurethane gasket.
Lock: Double-bit 3 mm insert and 90 ° movement. UCP/UCPT540 and above have three locking points. Other locks are available as an accessory.
Characteristics: Self extinguishing and halogen free. Double insulated, according to EN61439-1. Rated insulation voltage Ui = 1000 V ac and 1500 V dc.
Protection: IP 66, TYPE 4, 4X, 12, 13 and IP 65 only for UCPT430. Impact resistance IK 08 (IK 07 for enclosures with transparent door).
Approvals: CE, GOST. CSA and cULus_UL Listed approvals apply to plain door enclosures only. For further approvals, please contact nVent HOFFMAN's sales department.
Finish: RAL 7035, precoloured raw material.
Delivery: Enclosure with door, fixing screws for the mounting plate and a self adhesive rain strip.
Note: UCP320, UCP430 and UCP540 are delivered with the doors inside the packaging, unmounted.
