Code: 689101

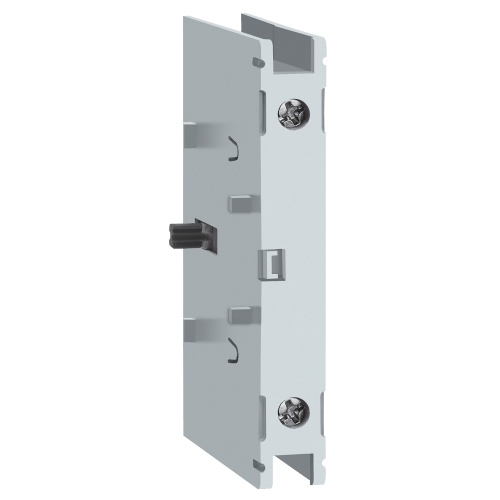

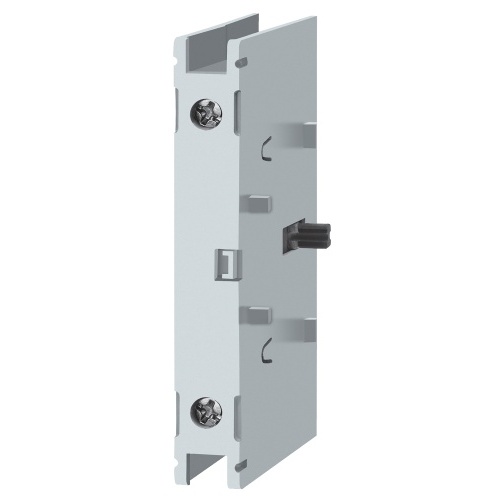

Schneider Electric VLS1P100R2S - Tesys VLS Additional Pole
Normally In Stock
Schneider Electric VLS1P100R2S - Tesys VLS Additional Pole
Condition: New
Usually ships Same Day or Next Day$98.77
Sale Price
$82.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric VLS1P100R2S - Disconnect switch, TeSys VLS, additional pole, 100A, for 100A switch, size 2, DIN rail
Specifications
Manufacturer
Schneider Electric
Component
Additional Pole
Features
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more
This family of disconnect switches has switches ranging from 16A to 125A
The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated
The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated
This fourth pole adder can be added to a VLS3P100R2 door mount switch
This fourth pole adder for DIN rail mounted devices can be mounted on the right or left hand side
This simultaneous closing adder pole has one normally open contact,The operational voltage of this fourth pole adder module is 600 Vac 50/60 Hz
This fourth pole adder module has a 100 A current rating
Fourth pole adder pole is 3.94 inches tall, 0.91 inches wide and 1.73 inches deep
It weighs 0.24 lbs
This fourth pole adder block is cULus Listed and meets IEC 60947-3 requirements.
